Product category: wheel loader

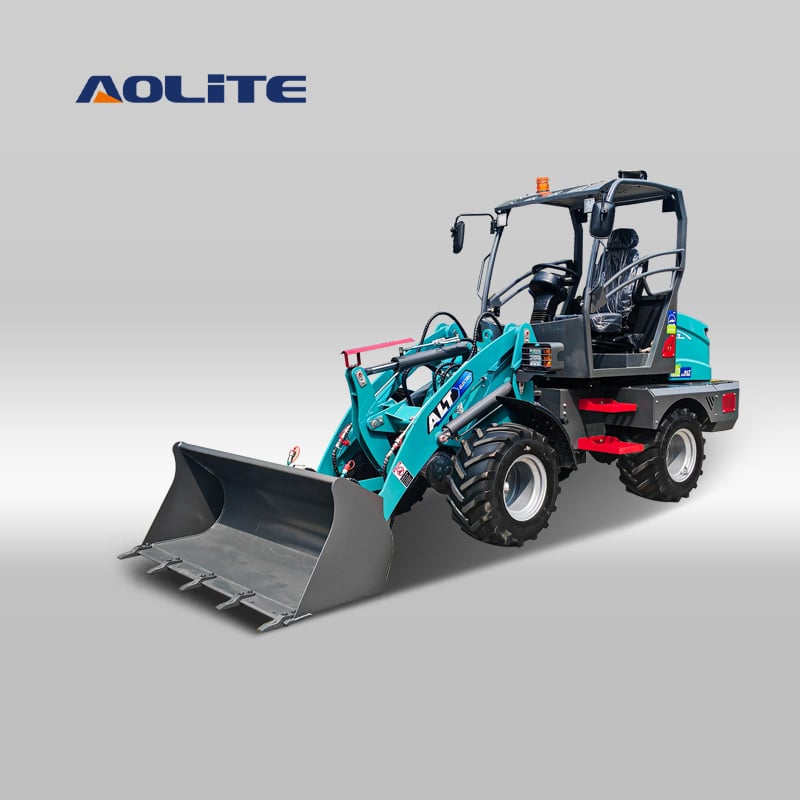

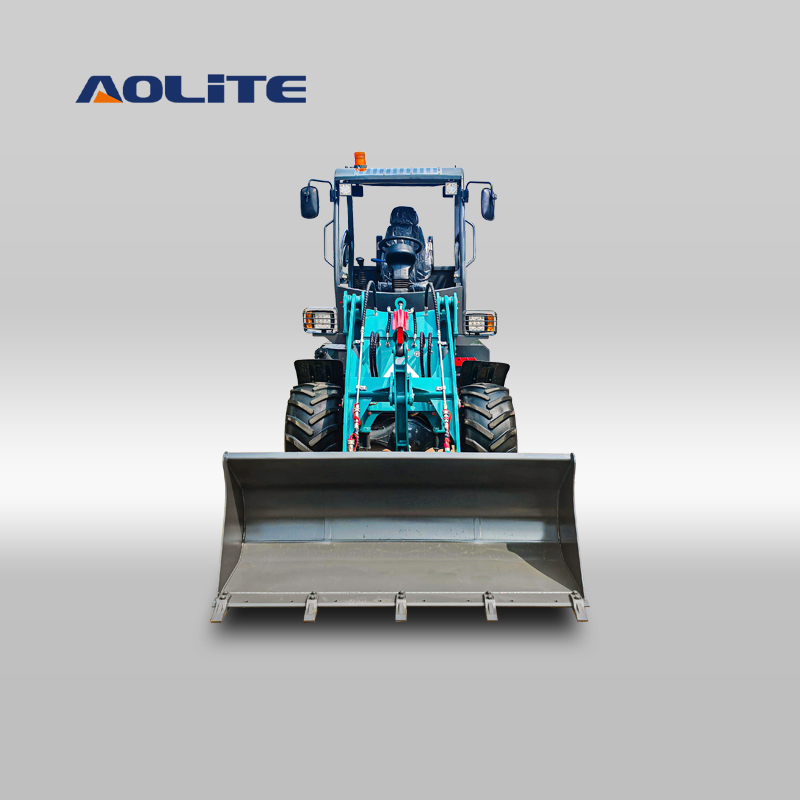

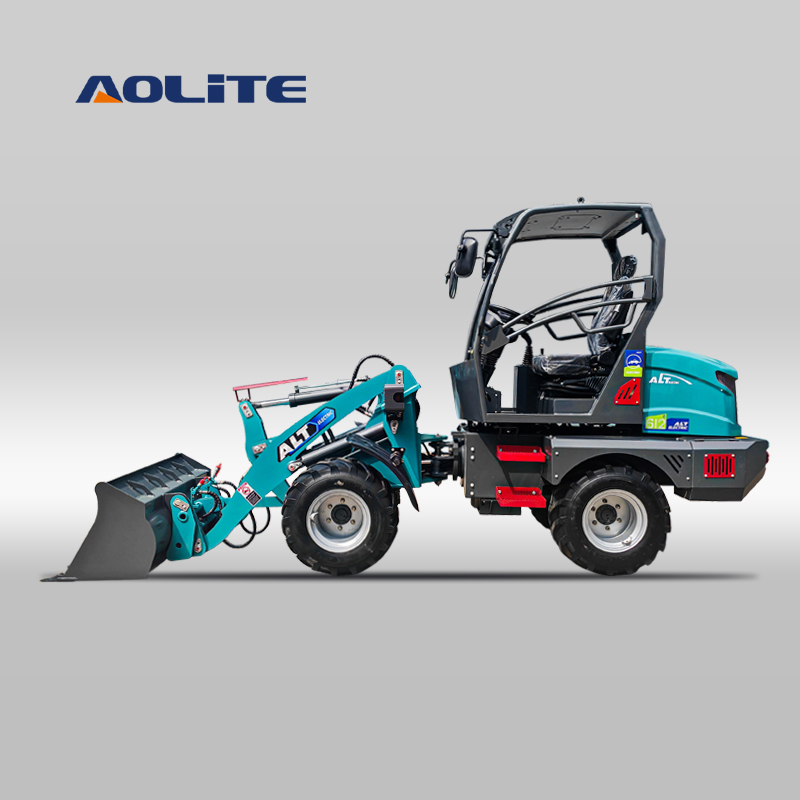

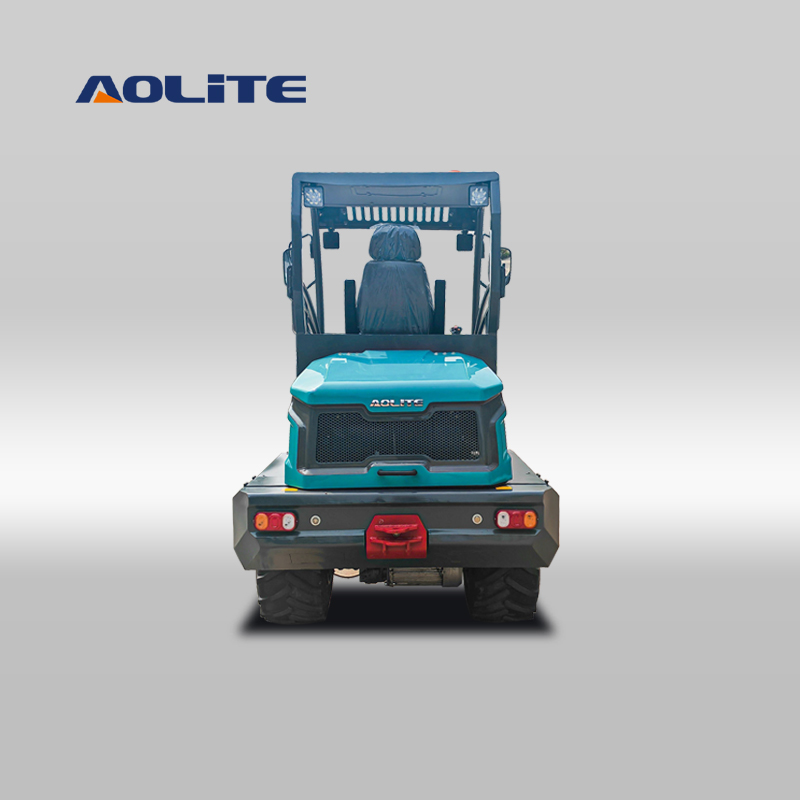

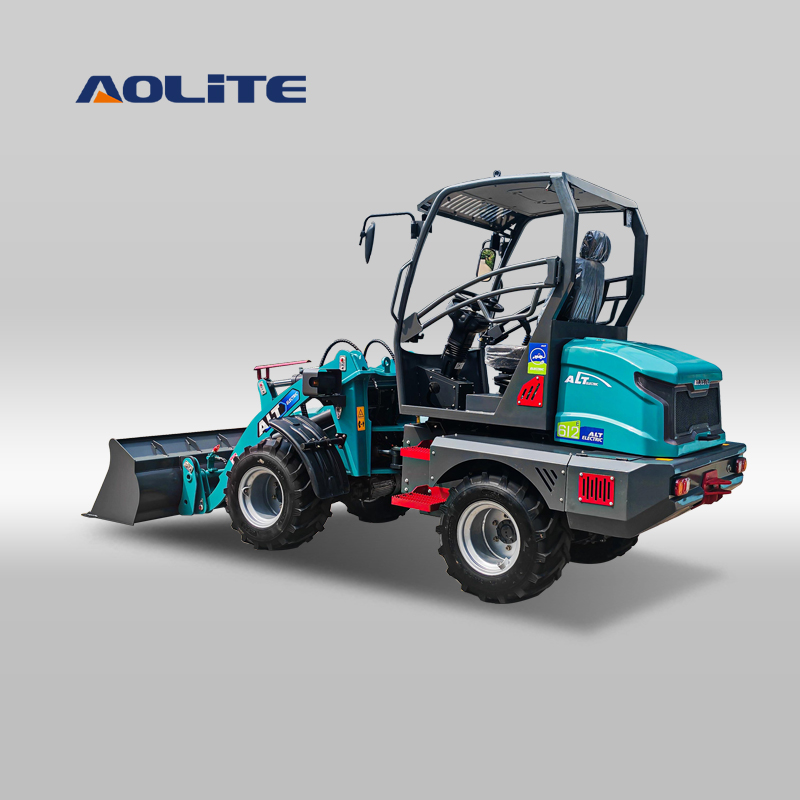

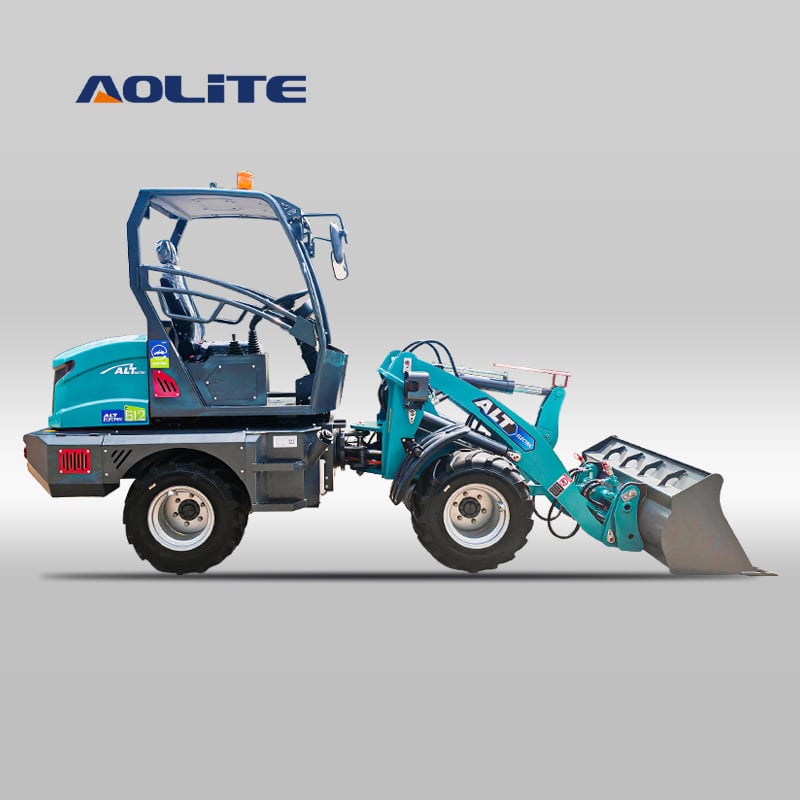

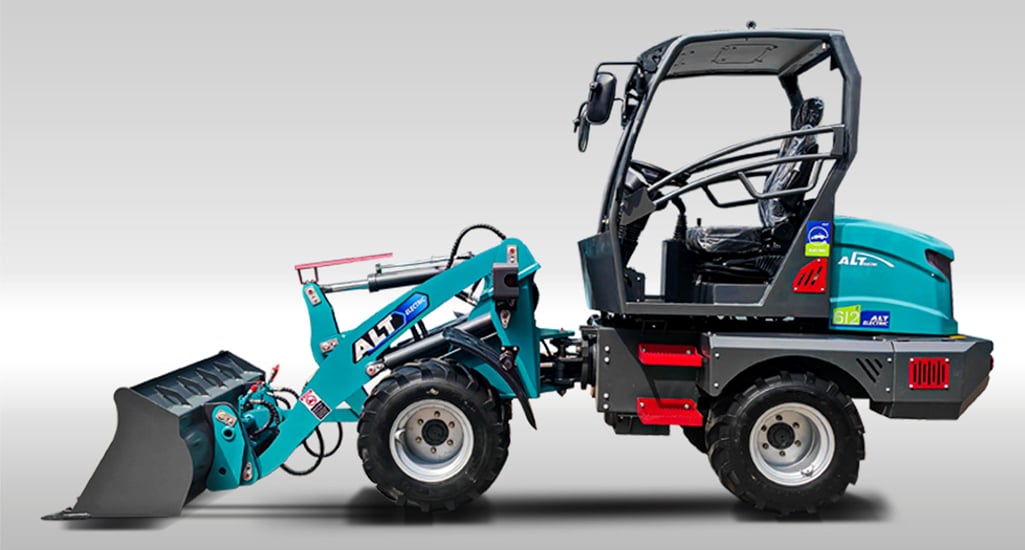

Name: E612 Electric wheel loader canopy version
Product brief description:
E612 Electric wheel loader canopy version
-- Environmental awareness is constantly growing and electromobility is not anymore a futuristic vision: it is reality.
-- Optional batteries type
Lead-acid batteries and Lithium batteries can be optional to meet different custoemrs needs.
-- Comfortable operation
closed cabin, air conditioning, luxurious shock absorption, adjustable seat with seat belt, ergonomic control handle, luxurious digital display instrument
-- Less charging time & Longer work time, charging time less than 8hours, large capacity cold-resistant maintenance: free battery to make sure 5 hours work time
-- Optional attachments, the quick hitch and bucket are included as standard, and a wide variety of other attachments are available to handle just about any work that needs doing.
| Rated load(kg) | 1200 |
| Overall weight(kg) | 3100 |
| Bucket capacity(m³) | 0.45 |
| Max.steering angle | ±40° |
| Min. steering radius(mm) | 3500 |
| Amplitude of the rear axle | 19 |
| Total time(s) | 9.9 |
| Working time(h) | 5 |
| Working speed(km/h) | low speed 10 high speed |
| Dumping height(mm) | 2410 |
| Lifting height(mm) | 3580 |
| Overall dimension(mm) | 4885*1730*2500 |
| Dumping distance(mm) | 860 |
| Bucket width(mm) | 1730 |
| Wheel base(mm) | 1835 |
| Wheel thread(mm) | 1185 |
| Min. ground clearance(mm) | 210 |
| Battery model | TEV12-256 |
| Battery type | Lead-acid maintenance free type |
| Battery quantity | 8 |
| Battery capacity(KW) | 25.4 |
| Rated voltage(V) | 96 |
| Charging time(h) | 8 |
| Walking system voltage(V) | 96 |
| Walking system power(KW) | 15 |
| Motor quantity | 2 |
| Tyre model | 31×15.5-15 |
| Working brake | Drum oil brake |
| Parking brake | Drum handbrake |
