Product category: Diesel wheeled excavator
Name: LW65 diesel wheeled excavator

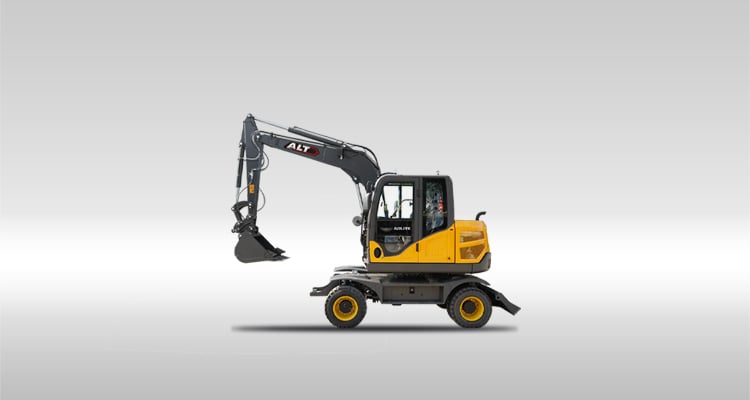

LW65 Diesel Wheeled Excavator
—Hydraulic Drive with 25km/h Travel Speed
Hydraulic drive system paired with wheel reduction wet axle delivers maximum travel speed 25km/h, ensuring quick and efficient site-to-site transfer without the need for towing or transport trailers.
—High-Pressure Hydraulic System with Strong Digging Forces
System pressure 28MPa, maximum bucket digging force 48kN and arm digging force 35kN, powered by domestic high-quality piston pump and main valve, delivers consistent, powerful performance even in hard digging conditions.
—Wet-Type Brake System for Long-Term Durability
Wet-type brake system ensures reliable stopping power with reduced wear and maintenance, paired with heavy-duty boom (3350mm) and arm (1750mm), built to last through extended shifts and tough terrain.
—Comfort-Focused Cab with Pilot Servo Control
Luxury sealed cabin with air conditioning, LCD display, and LED lights; hydraulic pilot servo operation system delivers precise and effortless control, reducing operator fatigue and boosting productivity throughout the day.
-- 2 sets in 1*40HQ container
| ENGINE | |
| Emission Standard | China stage III |
| Make /Model | YANMER/4TNV98L |
| Power /Rotation speed | 44.4kW |
| DRIVING SYSTEM | |
| Maximum Travel speed | 25km/h |
| Tire model/Number of tires | 7.00-15/8 |
| Driving type | Hydraulic drive |
| BRAKE SYSTEM | |
| Brake type | Wet type brake |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.21m³ |
| Swing speed | 12rpm |
| Maximum Grade ability | 25° |
| Maximum Bucket digging force | 48KN |
| Maximum Arm digging force | 35KN |
| Hydraulic system pressure | 28Mpa |
| Machine weight | 6200kg |
| Fuel tank | 115L |
| Hydraulic oil tank | 88L |
| Boom length | 3350mm |
| Arm length | 1750mm |

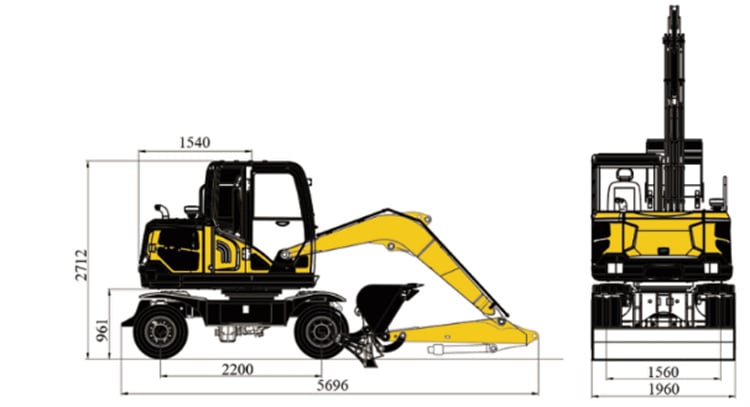

| MACHINE SIZE | |
| Overall dimension (L*W*H) | 5696mm*1960mm*2712mm |
| Height of cabin | 2712mm |
| Wheel base/Tread | 2200mm/1560mm |
| Minimum Ground clearance | 235mm |
| Swing radius at tail | 1540mm |

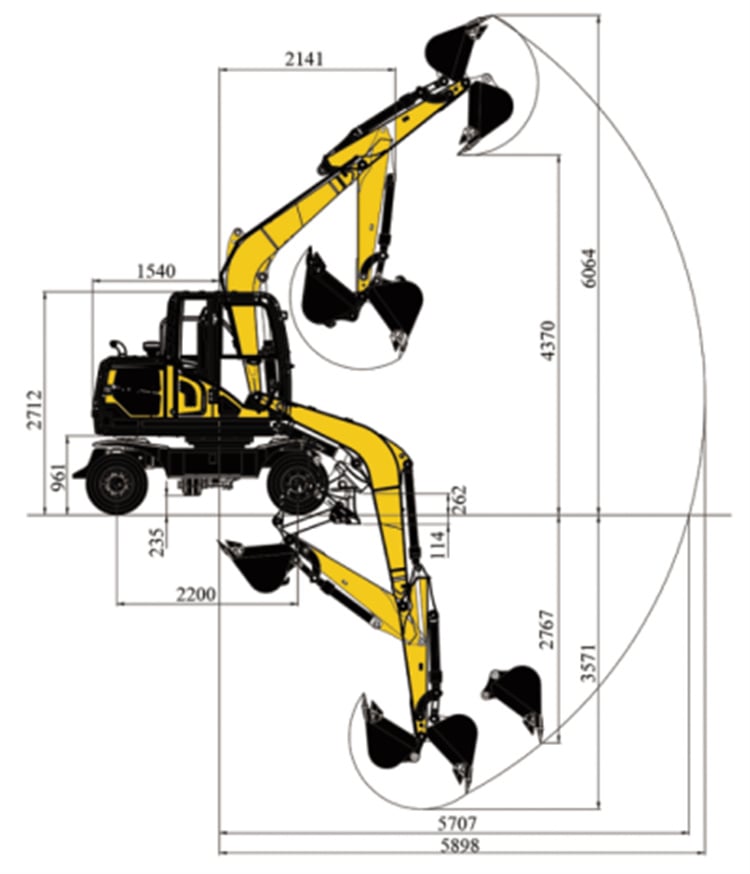

| WORKING RANGE | |
| Maximum Digging height | 6064mm |
| Maximum Dumping height | 4370mm |
| Maximum Digging depth | 3571mm |
| Maximum Vertical digging depth | 2767mm |
| Maximum Digging radius | 5898mm |
| Minimum swing radius | 2141mm |
| Maximum lifting height of dozer blade | 262mm |
| Maximum cutting depth of dozer blade | 114mm |
