Product category: wheel loader
Name: E615 Electric wheel loader closed cabin version
Product brief description:
E615 Electric wheel loader closed cabin version
-- Environmental awareness is constantly growing and electromobility is not anymore a futuristic vision: it is reality.
-- Optional batteries type
Lead-acid batteries and Lithium batteries can be optional to meet different custoemrs needs.
-- Comfortable operation
closed cabin, air conditioning, luxurious shock absorption, adjustable seat with seat belt, ergonomic control handle, luxurious digital display instrument
-- Less charging time & Longer work time, charging time less than 8hours, large capacity cold-resistant maintenance: free battery to make sure 5 hours work time
-- Optional attachments, the quick hitch and bucket are included as standard, and a wide variety of other attachments are available to handle just about any work that needs doing.

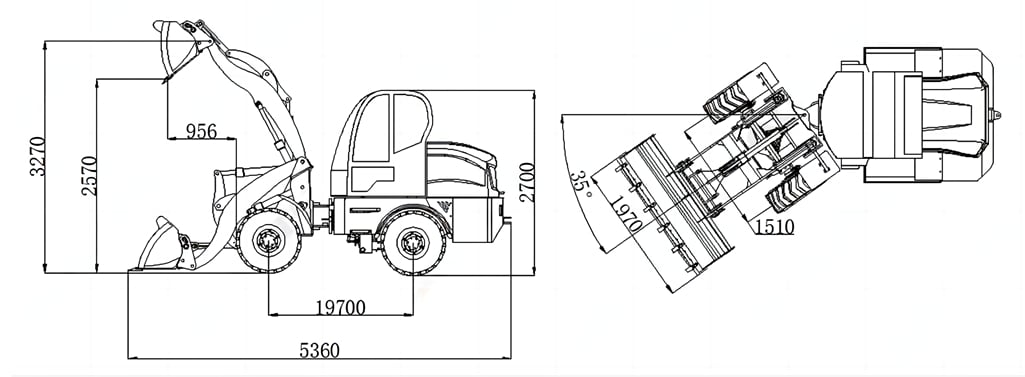

| Rated load(kg) | 1500 |
| Overall weight(kg) | 4750 |
| Bucket capacity(m³) | 0.7 |
| Max.steering angle | ±35° |
| Min. steering radius(mm) | 4440 |
| Amplitude of the rear axle | 20° |
| Total time(s) | 9 |
| Working time(h) | 5 |
| Working speed(km/h) | low speed 6/high speed 16 |
| Dumping height(mm) | 2570 |
| Lifting height(mm) | 3270 |
| Overall dimension(mm) | 5360*1970*2720 |
| Dumping distance(mm) | 945 |
| Bucket width(mm) | 1970 |
| Wheel base(mm) | 1975 |
| Wheel thread(mm) | 1510 |
| Min. ground clearance(mm) | 250 |
| Battery model | TEV12-180 |
| Battery type | Lead-acid maintenance free type |
| Battery quantity | 20 |
| Battery capacity(KW) | 45 |
| Rated voltage(V) | 120 |
| Charging time(h) | 8 |
| Walking system voltage(V) | 120 |
| Walking system power(KW) | 20 |
| Motor quantity | 1 |
| Tyre model | 15.5/60-18 |
| Working brake | Hydraulic Disk brake |
| Parking brake | Clamp handbrake |
