Product category: wheel loader
Name: 608H closed cabin version wheel loader

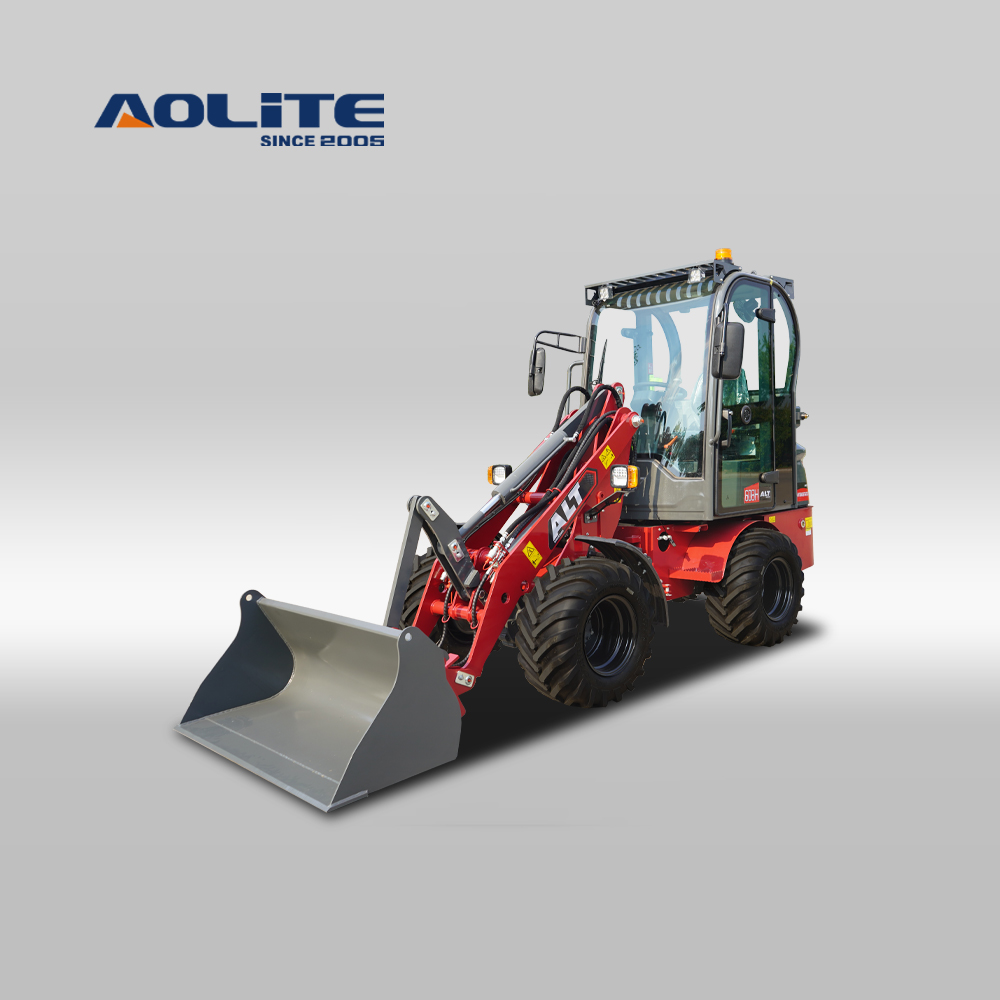

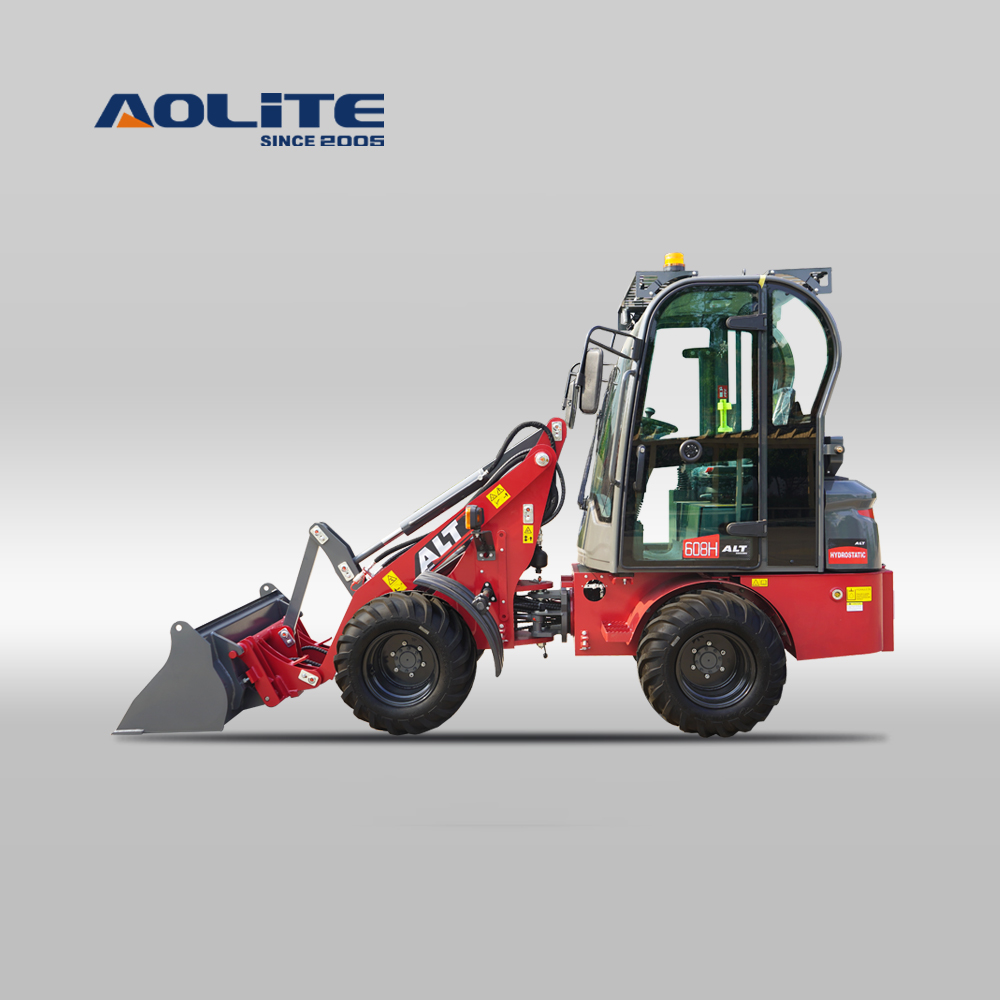

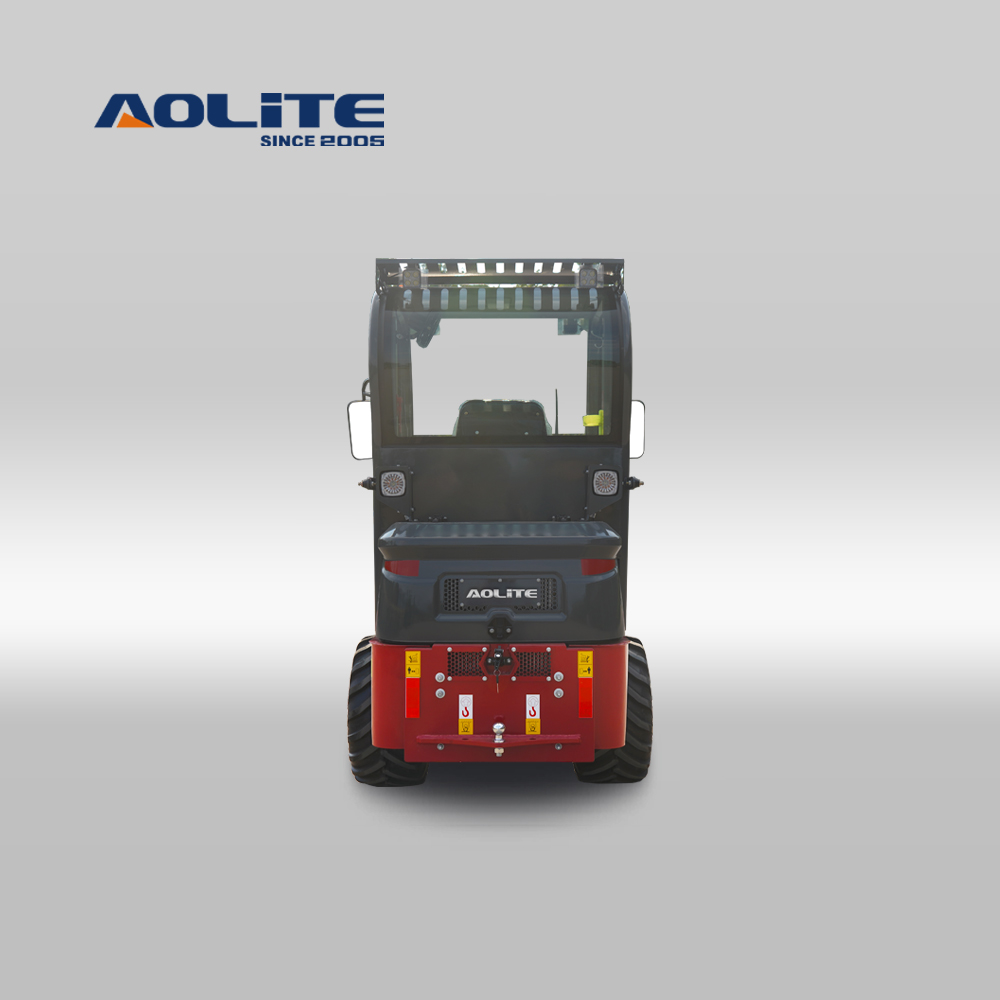

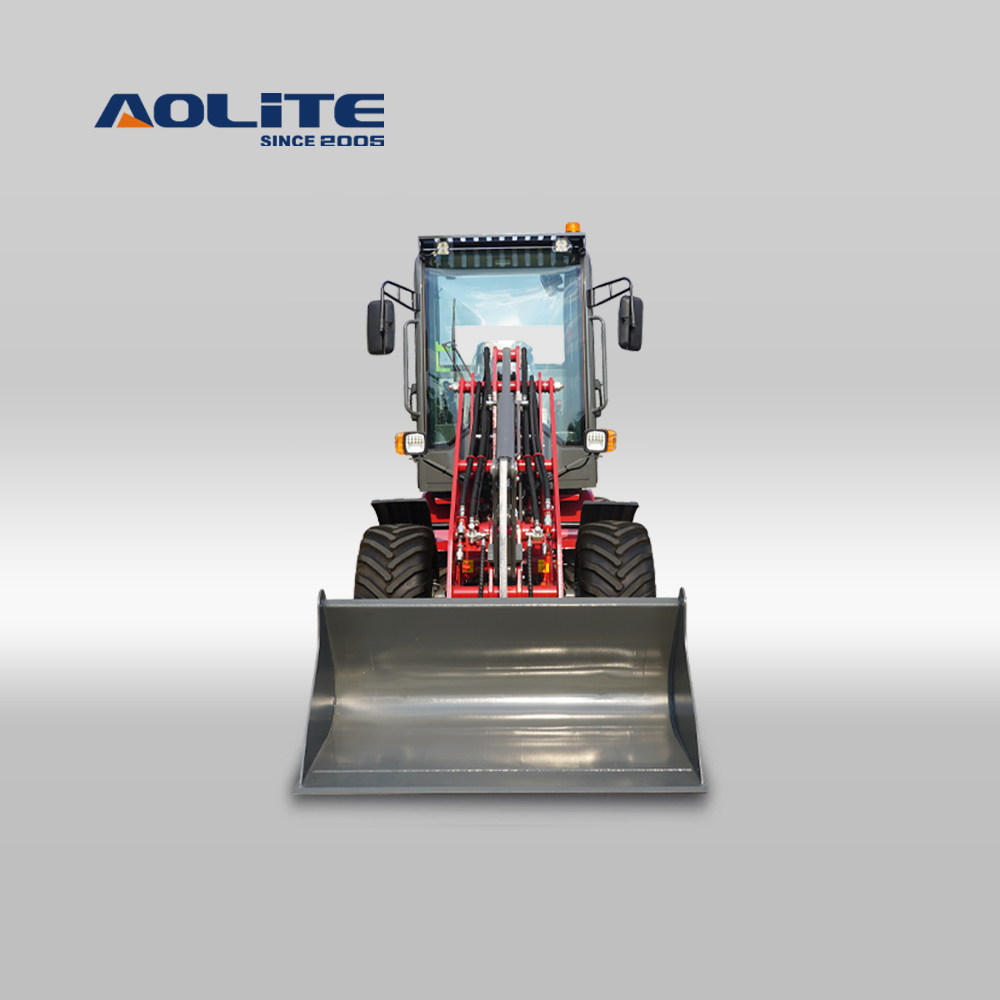

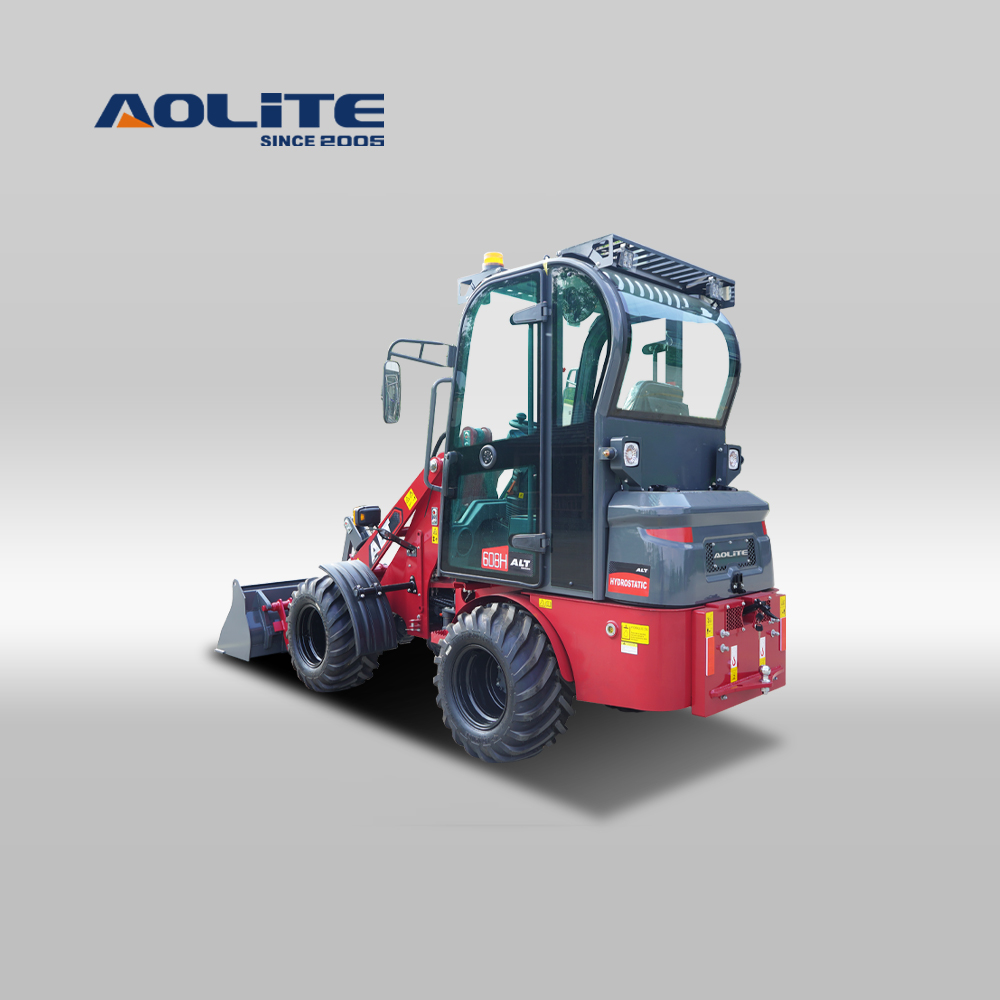

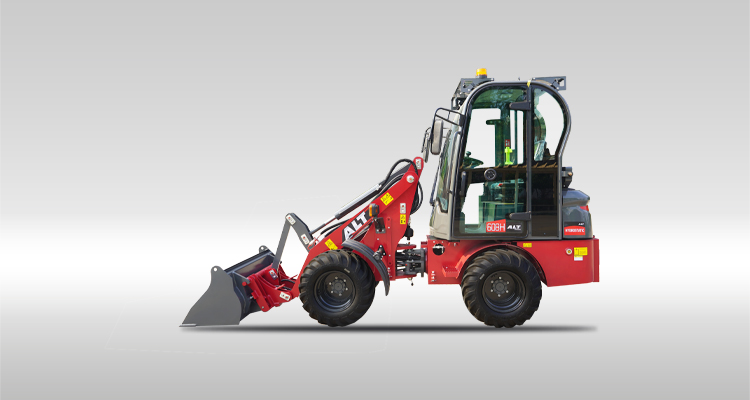

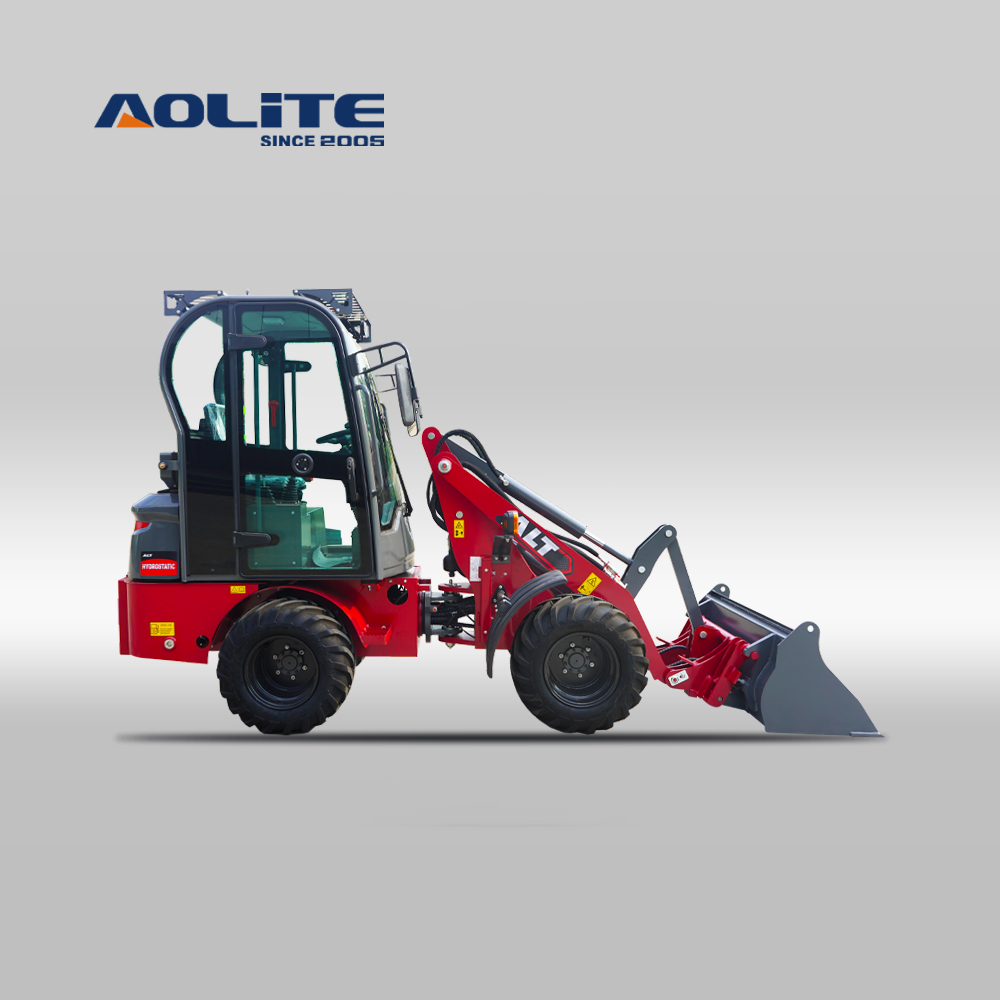

608H closed cabin version wheel loader
—Built for 800kg Daily Loads
Rated load 800kg, Capacity of bucket 0.25m³, powered by Yanmar 3TNV88F-ESSY diesel engine – reliable performance for farms, warehouses, and small construction sites.
—Choose Your Comfort Level
Cab version (2200kg) for weather/dust protection, or simple canopy version (2050kg) for ventilation and lower weight , both with CE Certification.
—Hydrostatic Drive for Smooth Control
Variable displacement piston pump with hydrostatic transmission, low speed 6km/h, high speed 12km/h , infinitely variable speed control and reduced operator fatigue.
—Compact Agility in Tight Spaces
Max. steering angle ±45°, length 3810mm, width 1260mm, wheel base 1380mm , navigate narrow aisles, doorways, and crowded job sites with ease.
— 4 sets in 1*20GP container —8 sets in 2*40HQ container
| Name / Category | 608H closed cabin version |
| Rated load (kg) | 800 kg |
| Capacity of bucket (m³) | 0.25m³ |
| Overall weight (kg) | 2200 kg |
| Max. dumping height (mm) | 2170 mm |
| Dumping distance (mm) | 405 mm |
| Gearbox model | Variable displacement piston pump |
| Transmission model | Hydrostatic |
| Low speed (Km/h) | 6 km/h |
| High speed (Km/h) | 12 km/h |
| Max. steering angle (°) | ±45° |
| length (mm) | 3810 mm |
| width (mm) | 1260 mm |
| Height (mm) | 2270 mm |
| Bucket width (mm) | 1130 mm |
| Wheel base (mm) | 1380 mm |
| Wheel tread (mm) | 980 mm |
| Min. ground clearance (mm) | 200 mm |
| Engine model | Yanmar 3TNV88F-ESSY |
| Engine brand | Yanmar Engine |
| Rated power (kW) | 17.3 kw |
| Rated speed (r/min) | 2200 r/min |
| Axle model | 06C axle |
| Tyer | 26×12.00-12 |
| Working brake | Drum hydraulic brake |
| Parking brake | Drum hand brake |
