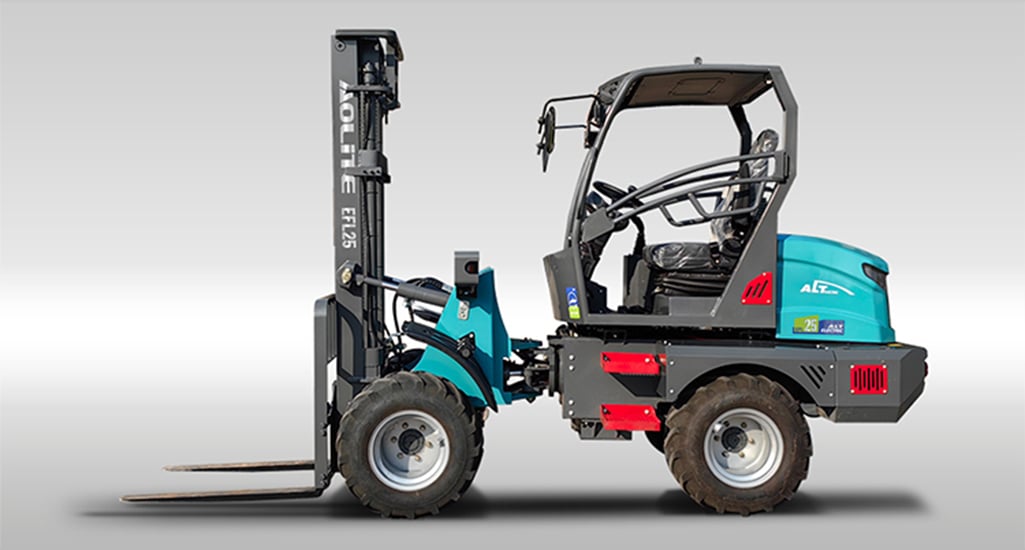

EFL25 Electric Forklift Loader Canopy version
-- Powerful and efficient, The finely tuned battery electric drive and high-speed motors enable quick response and strong power, making work effortless.
-- Long operating time, a standard high-capacity power battery and an intelligent temperature control system ensure 6-8hours of operation.
-- Comfortable driving and convenient control, Electric joystick control, shift on fly transmission; Air suspension seat ride control system application to improve driving comfort.
-- 1 set in 1*20GP container 4 sets in 1*40HQ container
| rated load/ fork length | 2500kg/ 1070mm |
| overall weight | 3465kg (canopy version) / 3765kg ( cabin version) |
| overall dimension | 4500*1580*2700mm |
| max. steering angle/ radius | 40°/ 3500mm |
| amplitude of the rear axle | ± 8° |
| work time/ charge time | 5 hours/ 8 hours |
| driving speed | low speed 10km/h , high speed 20km/h |
| lifting height/mini. ground clearance | 4060mm/ 210mm |
| wheel base/ wheel thread/ | 1835mm/ 1185mm |
| battery model/ type | TEV12-265 High performance lead acid maintenance-free |
| battery quantity/ capacity/ rated voltage | 8 pcs/ 25.4kw/ 96V |
| electrical system voltage | 12V |
| hydraulic system type/ voltage/ power/ displacement | Alternating current/ 96V/ 7.5kw/ 25ml/r |
| hdyraulic system motor speed/ pressure | 850r/min (low speed), 2000r/min (high speed)/ 16mpa |
| steering hydraulic system type/ pressure | full hydraulic/ 14 mpa |
| steering pump model | 5-200 |
| walking system power type/ voltage/ power | Alternating current/ 96V/ 15kw |
| walking system motor quantity | 2 pcs |
| tire model/ pressure/ quantity | 31X15.5-15/ 0.25mpa/ 4 pcs |
| working break/ parking brake | drum oil break/ drum hand break |
