Product category: wheel loader

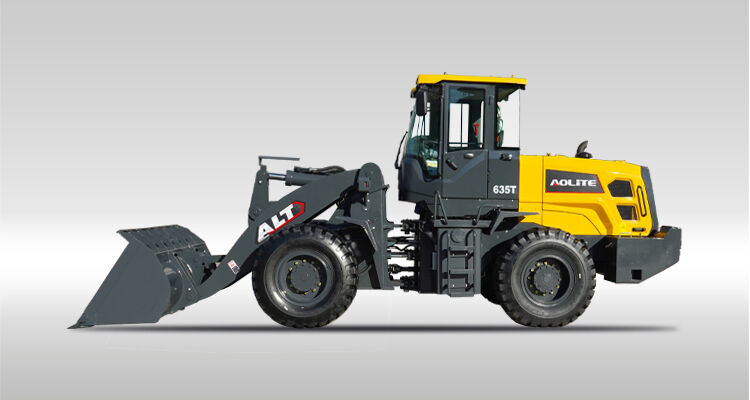

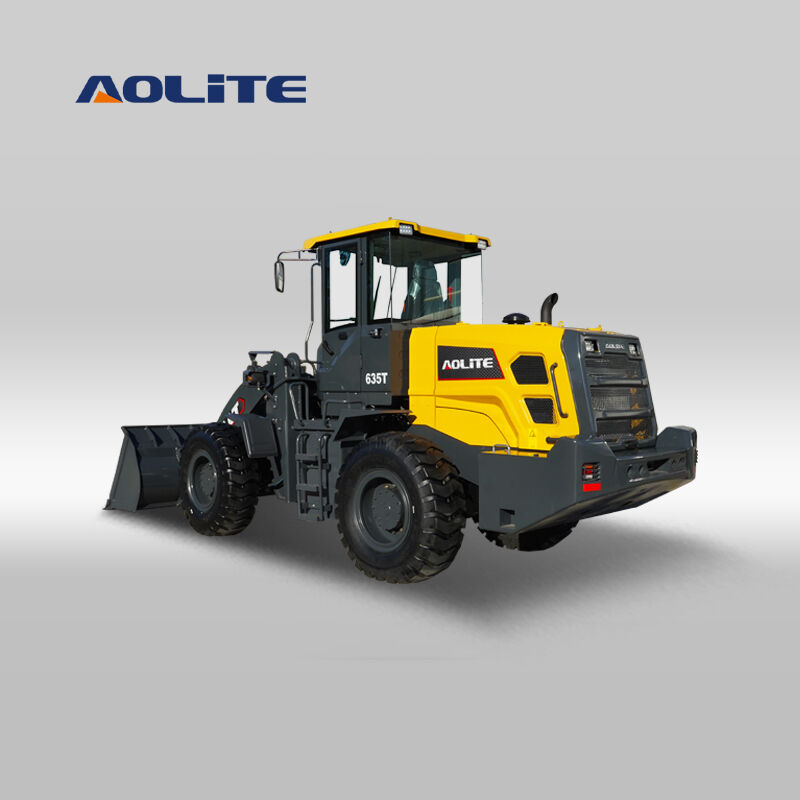

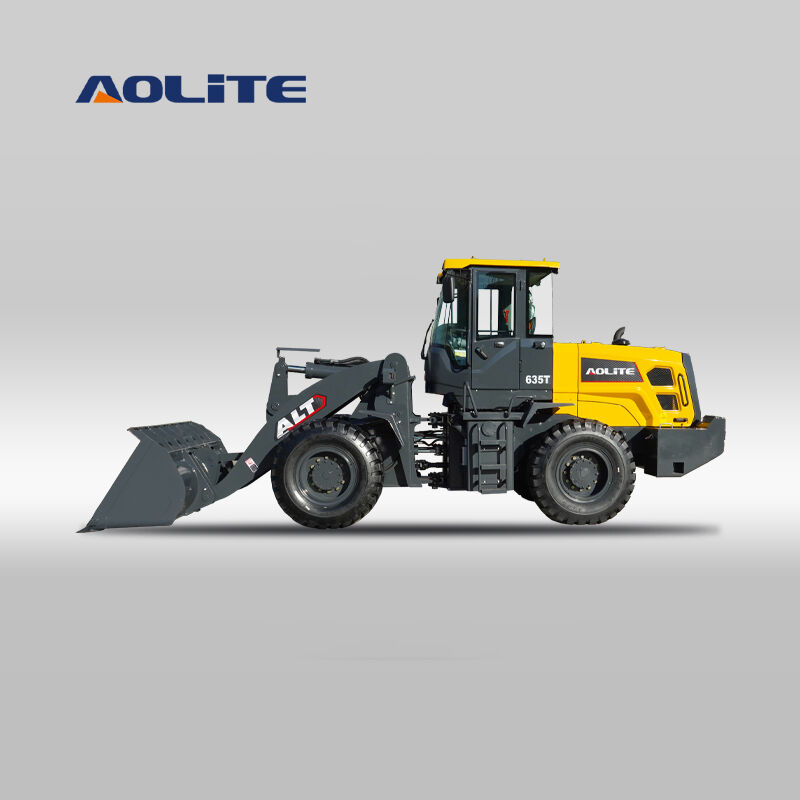

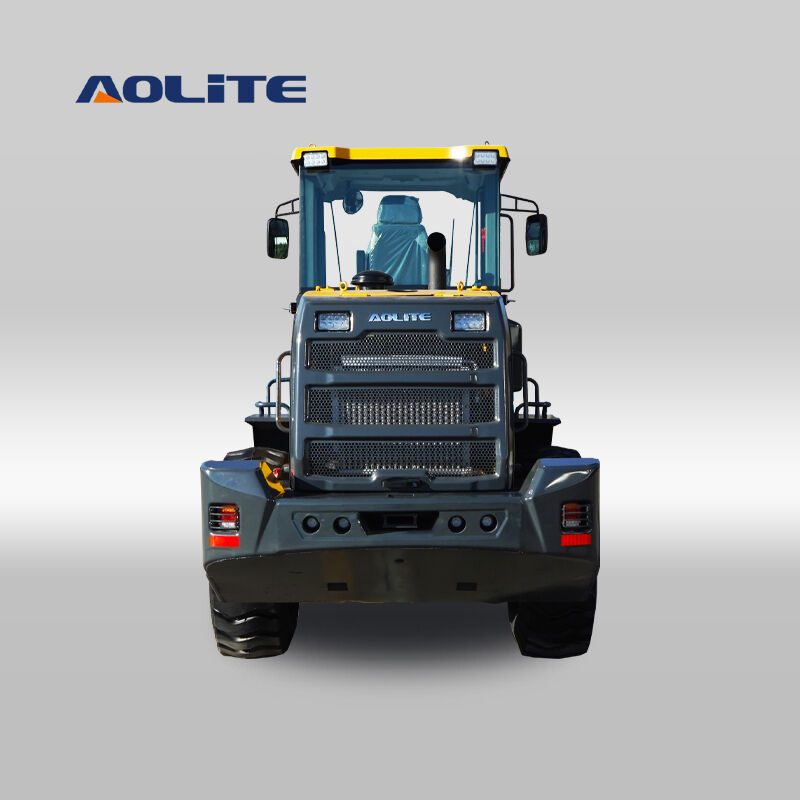

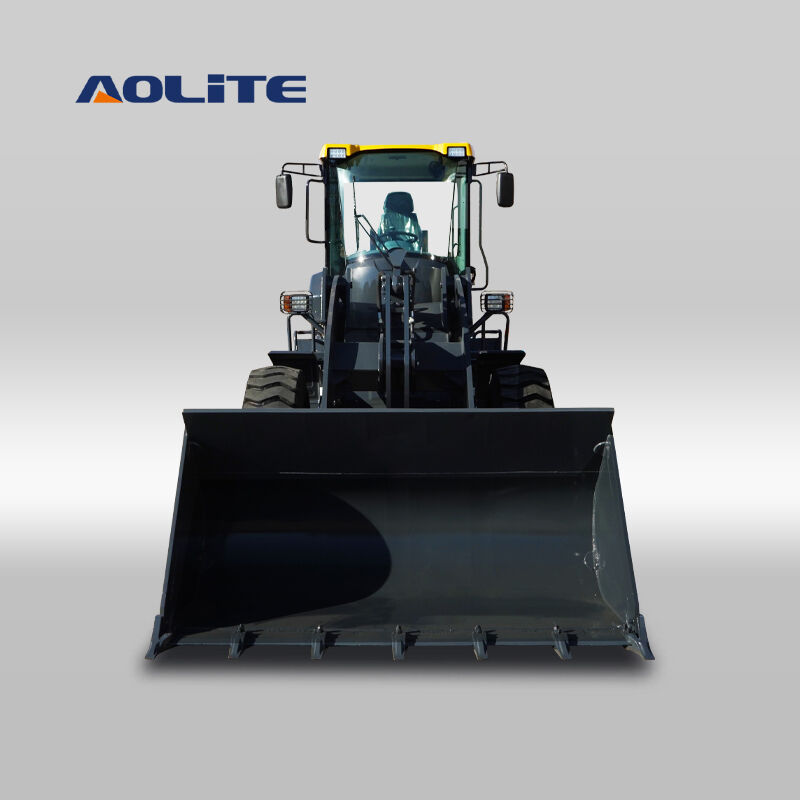

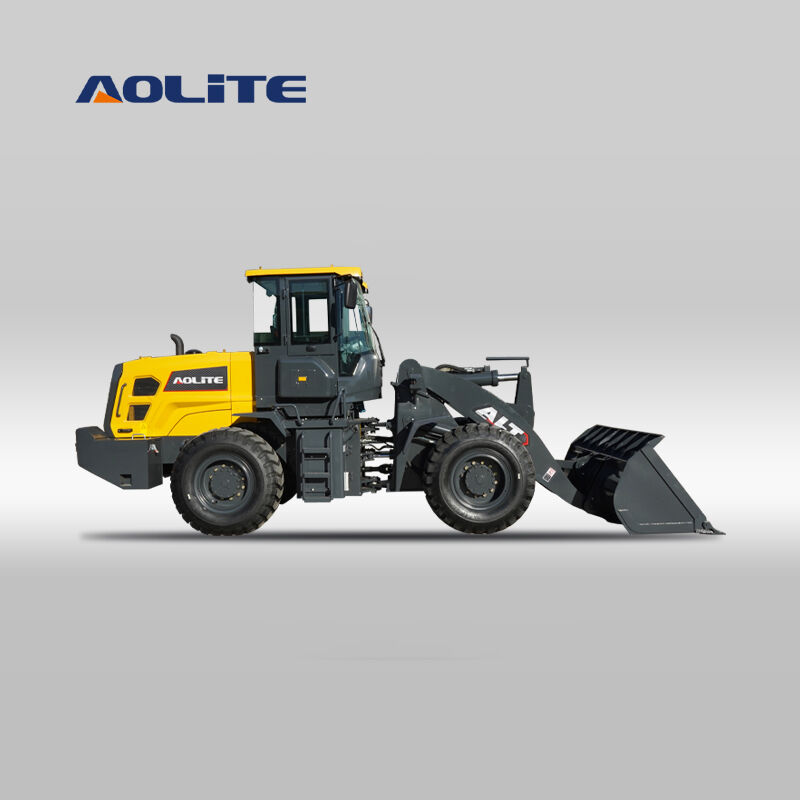

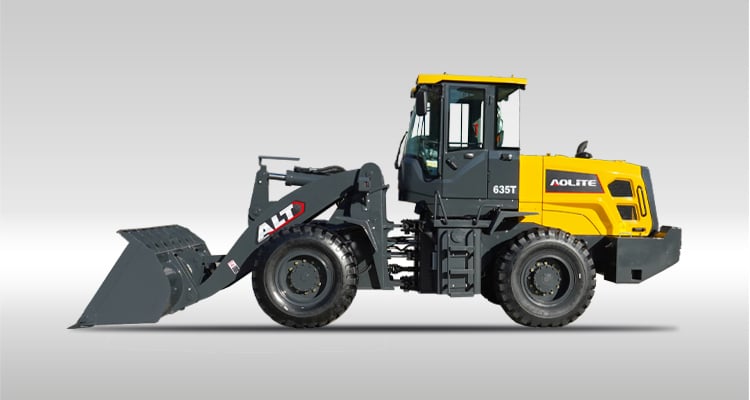

Name: 635T diesel wheel loader
635T diesel wheel loader
—Engineered for Extreme Durability
The entire machine utilizes Q355D steel plates. The frame design, verified by FEA and load spectrum testing, withstands repeated torsion and impact from rough terrain, preventing weld cracks.
—Superior Linkage & Wear Protection
Optimized Z-type six-bar linkage ensures excellent digging performance. All pins use special materials and heat treatment. Dustproof lubrication points protect pins and bushings from contamination.
—Built for Harsh Environments
Capable of handling demanding conditions in construction, municipal work, and material yards. Optional three-stage desert air filter allows reliable operation in extremely dusty environments.
—Easy & Safe Maintenance
Designed for serviceability. All daily checkpoints (fluid levels, grease points, filters) are easily accessible from the ground or a platform, ensuring maintenance safety and convenience.
——3 sets in 2*40HQ container
| Rated load(Kg) | 3500 |
| Bucket capacity(m3) | 2 |
| Overallweight (Kg) | 10600 |
| Max.dumping height(mm) | 3240 |
| Dumping distance(mm) | 1240 |
| Gearbox model | 320B |
| Transmission mode | Hydraulic torque converter |
| Low gear(Km/h) | 8 |
| High gear(Km/h) | 40 |
| Max.steering angle | ±35° |
| Length(mm) | 7750 |
| Width(mm) | 2425 |
| Height(mm) | 3280 |
| Bucket width (mm) | 2425 |
| Wheel base(mm) | 3000 |
| Wheel thread(mm) | 1825 |
| Min.ground clearance(mm) | 320 |
| Engine model | WP6G140E22 |
| Engine brand | WEICHAI DEUTZ |
| Rated power (kw) | 105 |
| Rated speed(r/min) | 2200 |
| Alxe model | ZL30 |
| Tyre | 17.5-25 |
