Product category: wheel loader
Name: E620 Electric Wheel Loader

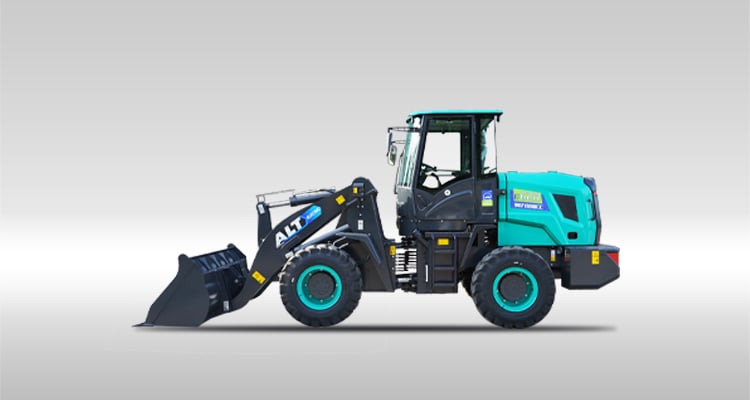

E620 Electric Wheel Loader
—Advanced Dual-Motor Hydraulic System
Adopting dual hydraulic motors with dual-pump confluence technology: single motor for light-load operations maximizing economy; dual motors working together delivering up to 146L/min flow rate for heavy-load conditions, the perfect balance between efficiency and energy consumption.
—Reliable Switched Reluctance Motor Technology
Featuring the new-generation switched reluctance motor, combining the high efficiency of permanent magnet synchronous motors with the high-temperature resistance and reliability of AC asynchronous motors, no demagnetization risk even under continuous heavy loads.
—Intelligent Dual Cooling System
Independent hydraulic oil temperature control with adjustable-speed fan keeps oil temperature below 80°C under heavy loads; forced transmission oil cooling prevents overheating during frequent shuttling, protecting seals and extending component replacement intervals.
—Low-Voltage LFP Battery with Ultra-Long Warranty
153.6V low-voltage platform with 80kWh LFP blade battery, automotive-grade safety design with extremely low thermal runaway risk, backed by 8-year or 15,000-hour warranty, eliminating battery life concerns.
--2 sets in 1*40HQ container
| Operating Weight (kg) | 6240 |
| Rated Load Capacity (kg) | 2000 |
| Lifting Height (mm) | 3960 |
| Dumping Height (mm) | 3400 |
| Dumping Reach (mm) | 950 |
| Overall Dimensions (L/W/H) (mm) | 6640*2270*2930 |
| Bucket Width (mm) | 2270 |
| Bucket Capacity (m³) | 1.1 |
| Wheelbase (mm) | 2550 |
| Wheel Tread (mm) | 1700 |
| Minimum Ground Clearance (mm) | 300 |
| Minimum Turning Radius (Front Wheel Outer Edge) (mm) | 4920 |
| Maximum Steering Angle (°) | ±35° |
| Oscillation Angle (°) | ±12 |
| Total Cycle Time (s) | 12 |
| Travel System Rated Power (kW) | 22 |
| Travel System Peak Power (kW) | 35 |
| Travel Motor Quantity | 1 |
| Hydraulic System Rated Power (kW) | 22×2 |
| Hydraulic System Flow Rate (L/min) | 146 |
| Hydraulic System Pressure (MPa) | 17 |
| Battery Model | 153.6V/520Ah |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Battery Pack Quantity | 1 |
| Total Battery Capacity (kWh) | 80 |
| Rated Voltage (V) | 153.6 |
| Battery Charging Time (h) | ＜2.5 |
| Operating Time (h) | 6±0.5 |
| Travel Speed (km/h) | Low Speed 8 |
| Travel Speed (km/h) | High Speed 22 |
| Drive Axle Model | Heavy-Duty Silent Planetary Reduction Drive Axle |
| Tire Model | 16/70-20 |
| Tire Pressure (kPa) | 350 |
| Tire Quantity | 4 |
| Service Brake | Hydraulic Brake |
| Parking Brake | Disc Hand Brake |
