Product category: rear dumper loader

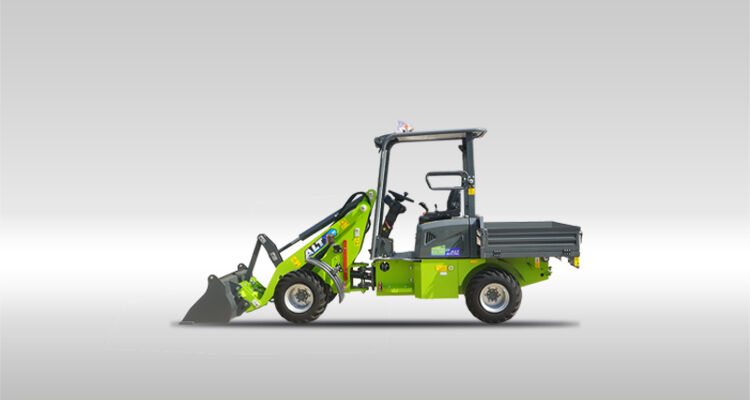

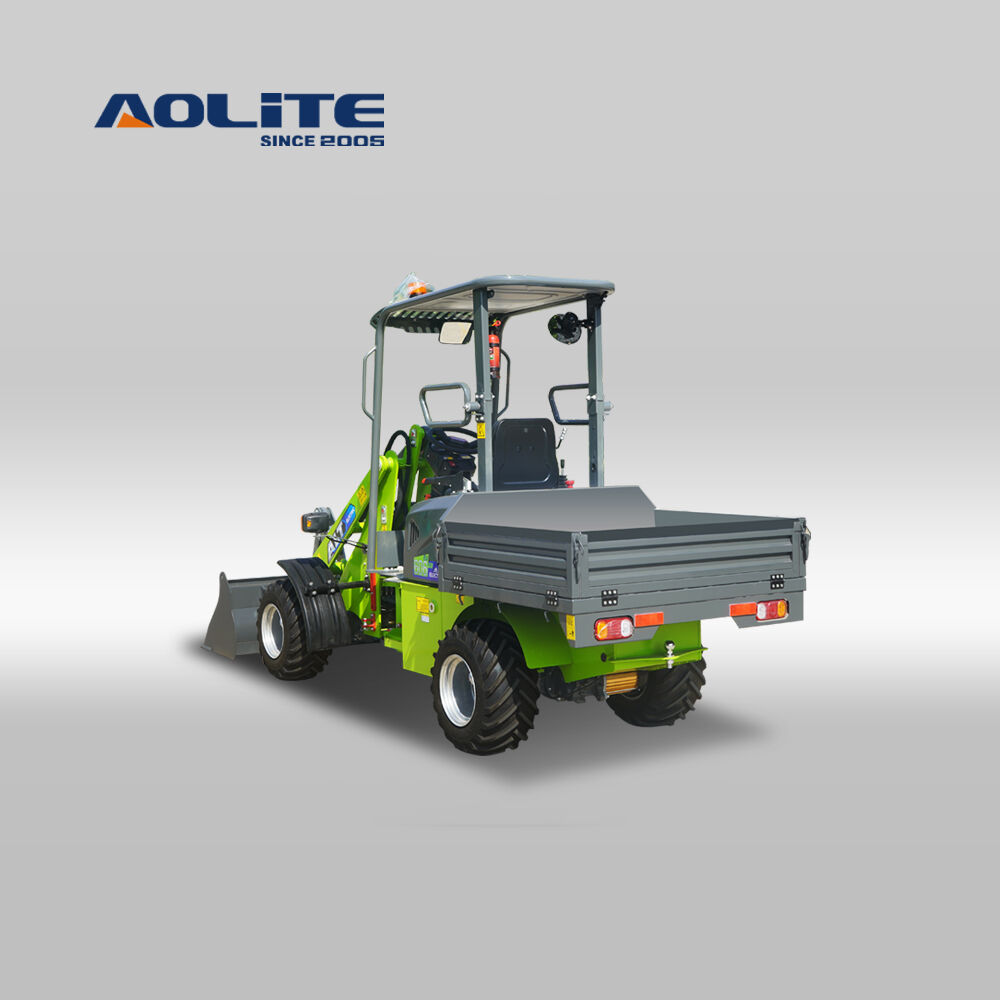

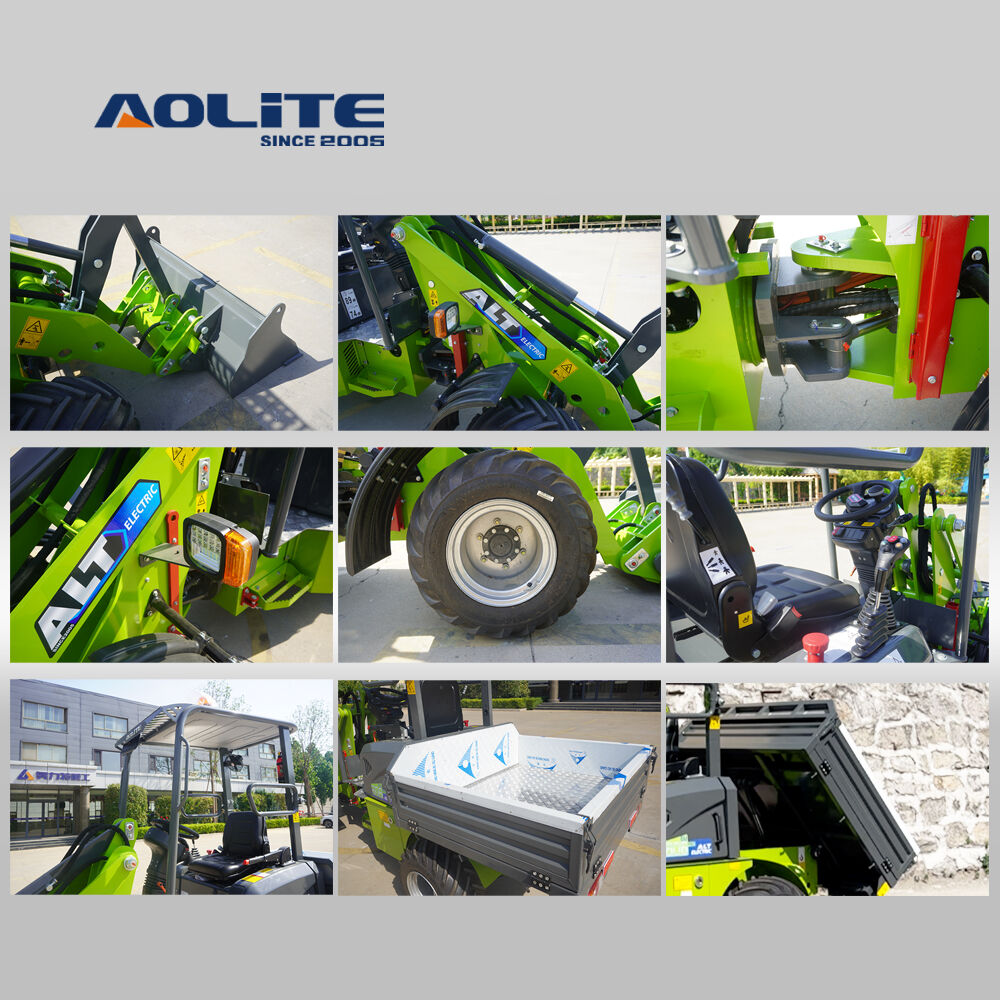

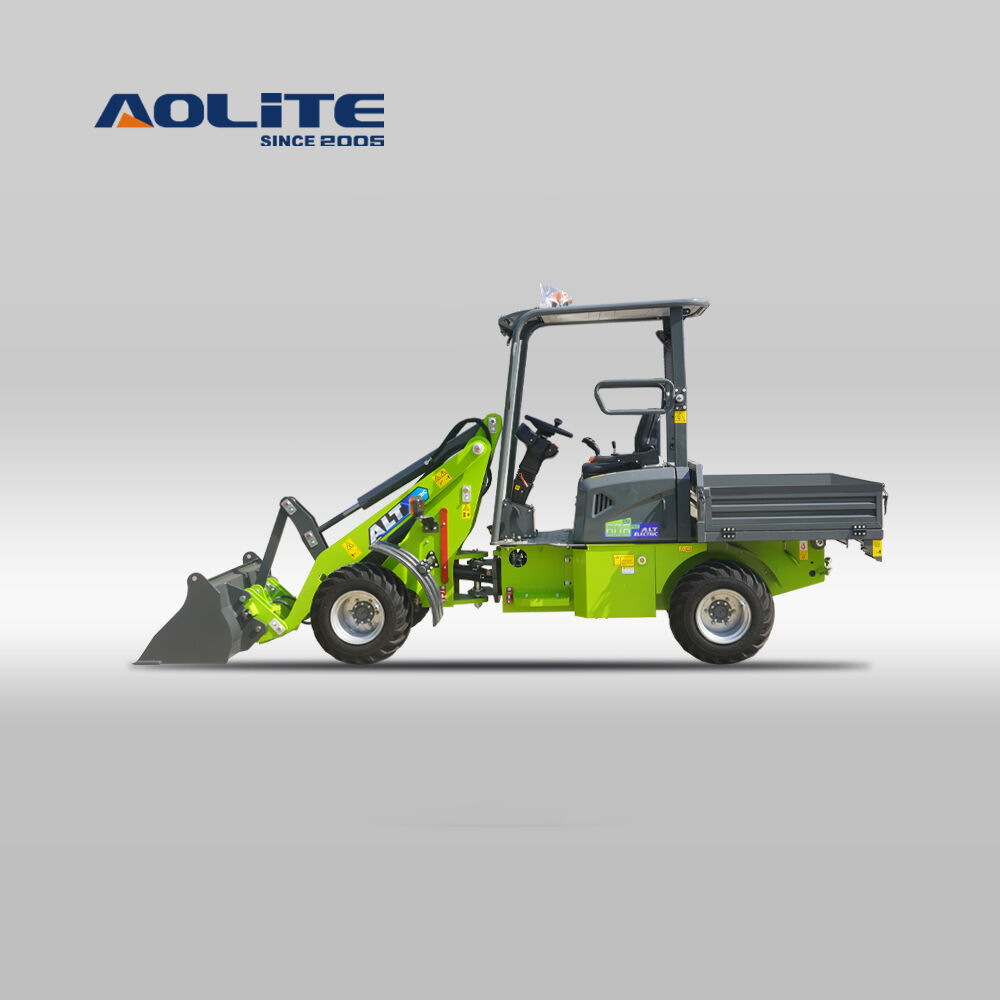

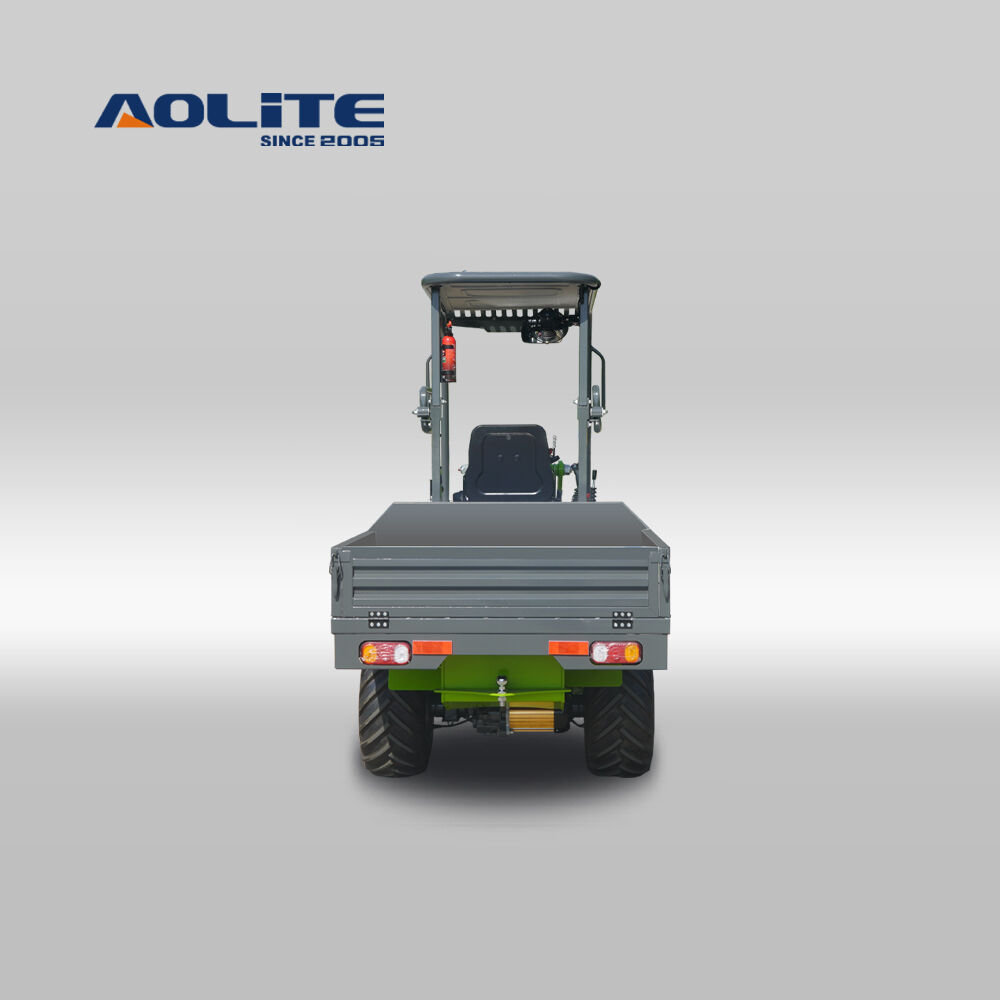

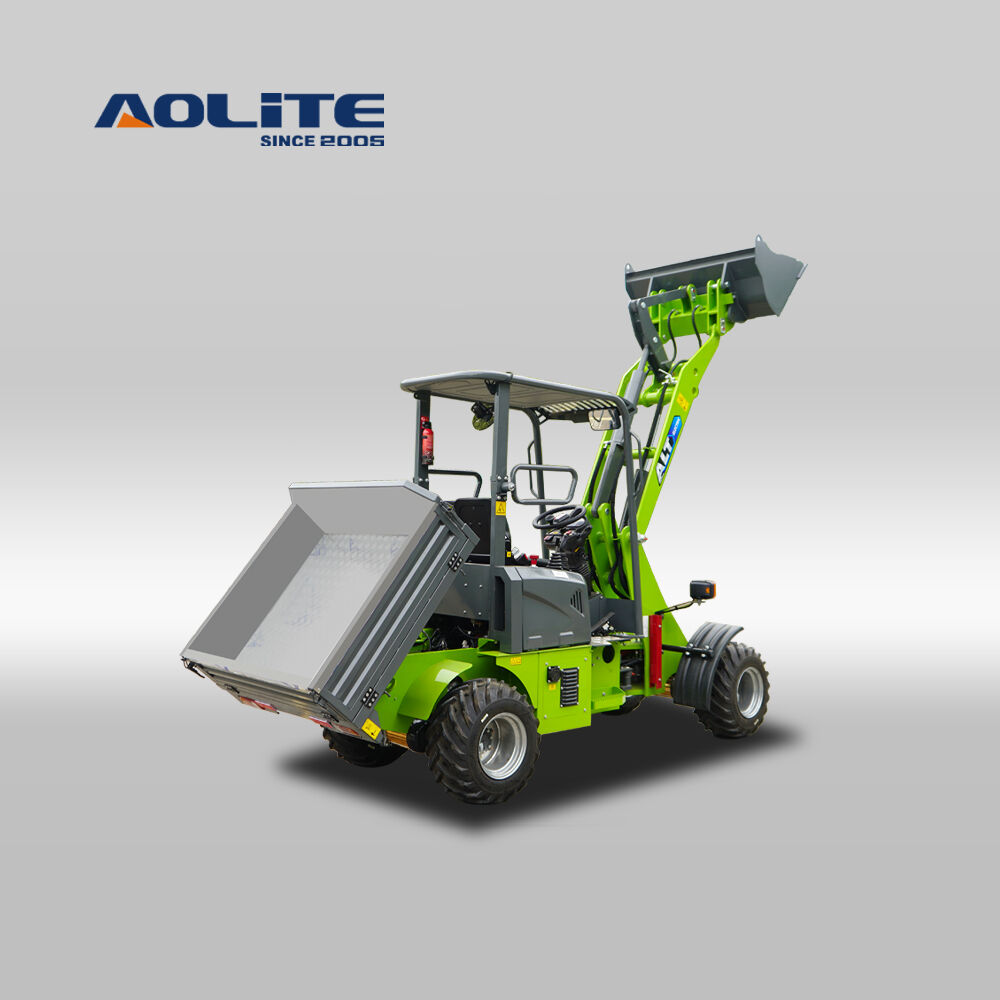

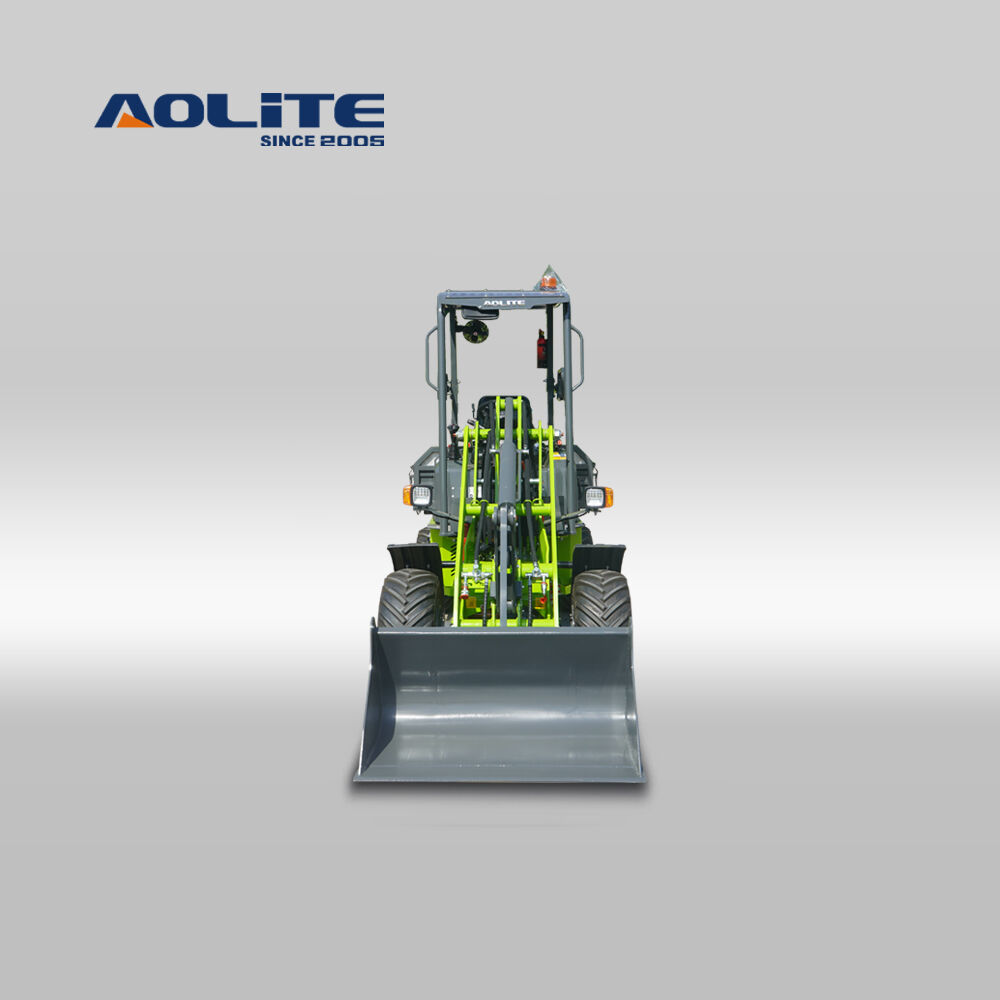

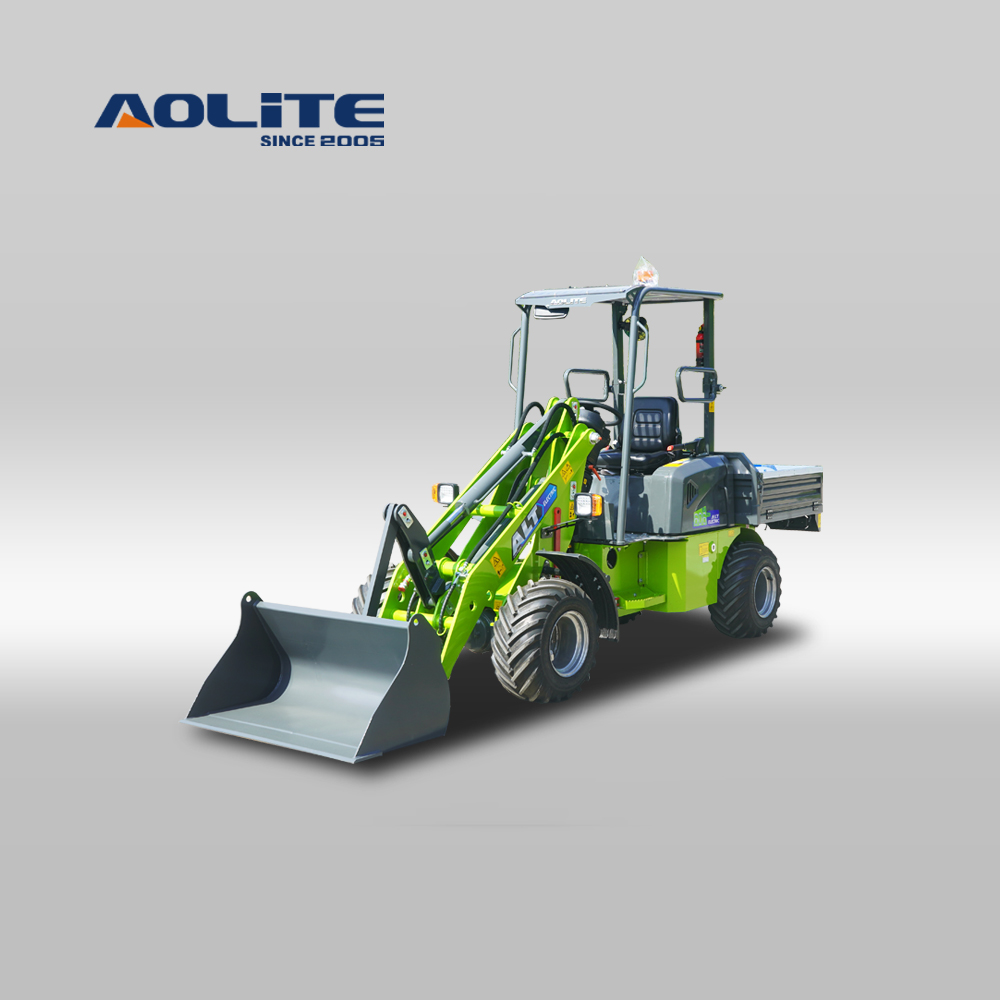

Name: EU606 electric rear dumper loader
EU606 Electric Rear Dumper Loader
—Zero-Emission Electric Powertrain
Battery Model 73.6V-240AH LEP battery with Total Battery Capacity 17.7kW and Battery Charging Time 5h, clean, quiet operation for indoor and farm use.
—Powerful Hydraulic Flow & 40+ Attachments
The EU606 provides a strong and stable hydraulic output, enabling all high-flow attachments to exert full performance mow grass in the morning, grab logs in the afternoon, or drill holes at night.
—Effortless Hydraulic Power Steering
Combined with its hydraulic power steering system, the EU606 delivers nearly effortless control experience without causing fatigue even after long hours of operation.
—Zero Redundant Pressure with Shared Platform
The EU606 shares the core three-electric system and spare parts with the E606 no need to stock exclusive accessories, reducing spare parts costs.
1 set in 1*20GP container 3 sets in 1*40HQ container.
| Rated Operating Capacity (kg) | 650 |
| Overall weight (kg) | 1935 |
| Bucket Capacity (m³) | 0.25 |
| Rear Bin Internal Dimensions(mm) | 1020×1220×270 |
| Rear dumping bucket (m³) | 0.52 |
| Rear dumping bucket load (kg) | 1000 |
| Maximum Steering Angle | ±45° |
| Minimum Turning Radius (mm) | 3950 |
| Swing Angle | 8 |
| Total time(s) | 8 |
| Working time (h) | 7 |
| Travel Speed (km/h) | Low speed 10 High speed 20 |
| Dump Height (mm) | 2170 |
| Lift Height (mm) | 3330 |
| Overall Dimensions (LWH) (mm) | 4650*1300*2250 |
| Reach at Max Height / Dump Reach (mm) | 405 |
| Outside tire width (mm) | 1280 |
| Bucket Width (mm) | 1150 |
| Wheel base (mm) | 2250 |
| Track Width (mm) | 995 |
| Minimum Ground Clearance (mm) | 200 |
| Battery Model | 73.6V-240AH |
| Battery Type | LEP |
| Number of Battery Sets (Group(s)) | 1 |
| Total Battery Capacity (kW) | 17.7 |
| Rated Voltage (V) | 73.6 |
| Battery Charging Time (h) | 5 |
| Electrical System Voltage (V) | 12 |
| Hydraulic System Power Supply Type | AC |
| Hydraulic System Voltage (V) | 73.6 |
| Hydraulic System Power (kW) | 4.5 |
| Hydraulic System Displacement (ml/r) | 18 |
| Hydraulic Motor Speed (r/min) | Low speed 800 High speed 2200 |
| Hydraulic System Pressure (MPa) | 16 |
| Type of Steering Hydraulic System | Fully hydraulic steering |
| Steering System Pressure (MPa) | 14 |
| Steering Gear Model | 5-125 |
| Steering Cylinder Model | 63*190mm |
| Number of Steering Cylinders (pc(s)) | 1 |
| Travel System Power Supply Type | AC |
| Travel System Voltage (V) | 73.6 |
| Travel System Power (kW) | 4.5*2 |
| Motor quantity | 2 |
| Tire Model | 26×12.00-12 |
| Tire Pressure (MPa) | 0.25 |
| Number of Tires | 4 |
| Service Brake | Drum brake |
| Parking Brake | Drum handbrake |
