Product category: wheel loader
Name: 608H canopy version wheel loader

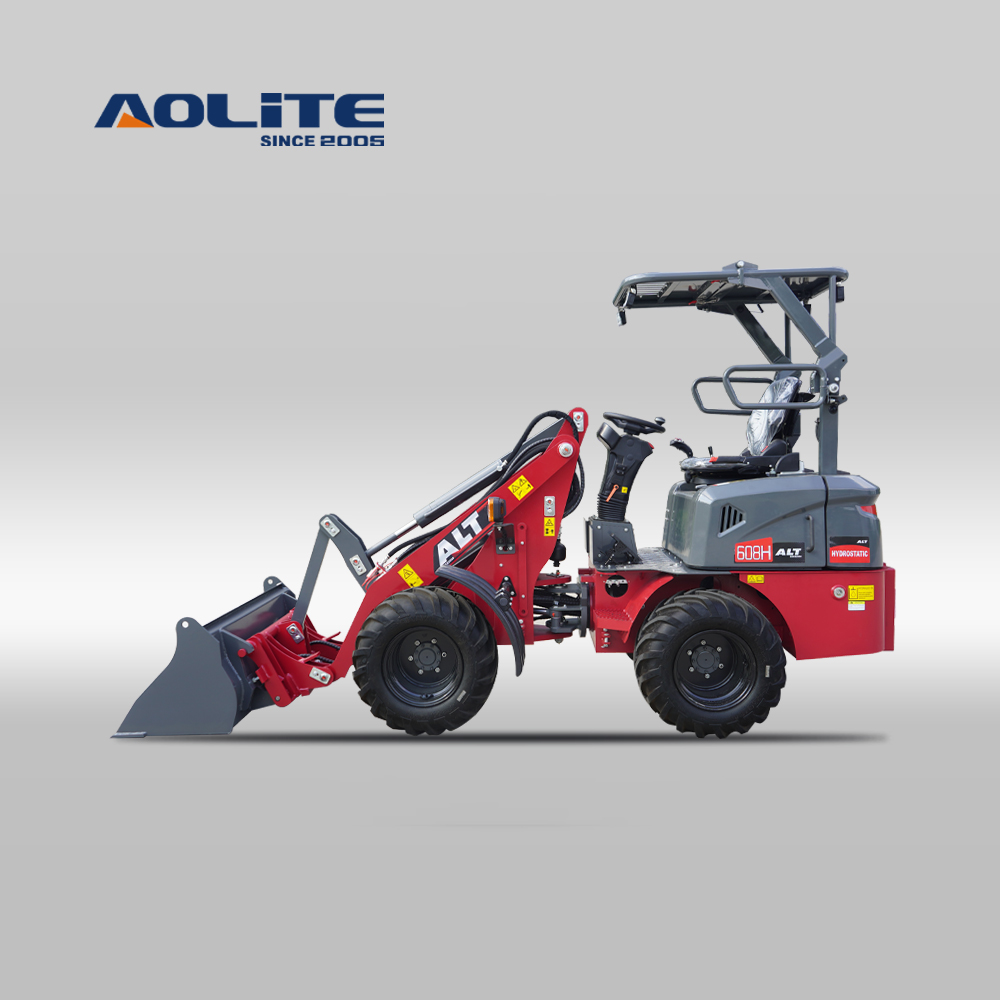

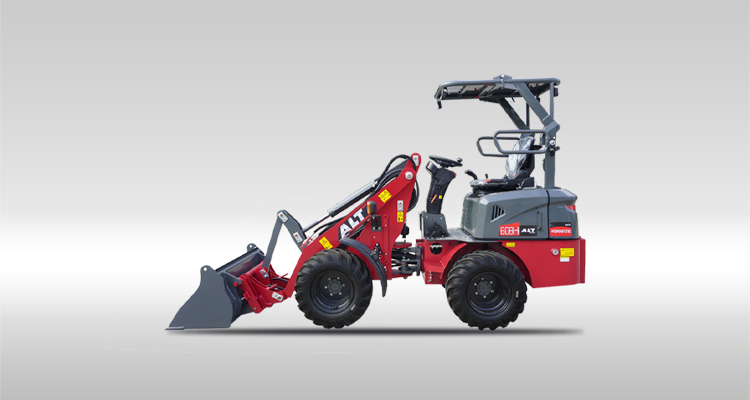

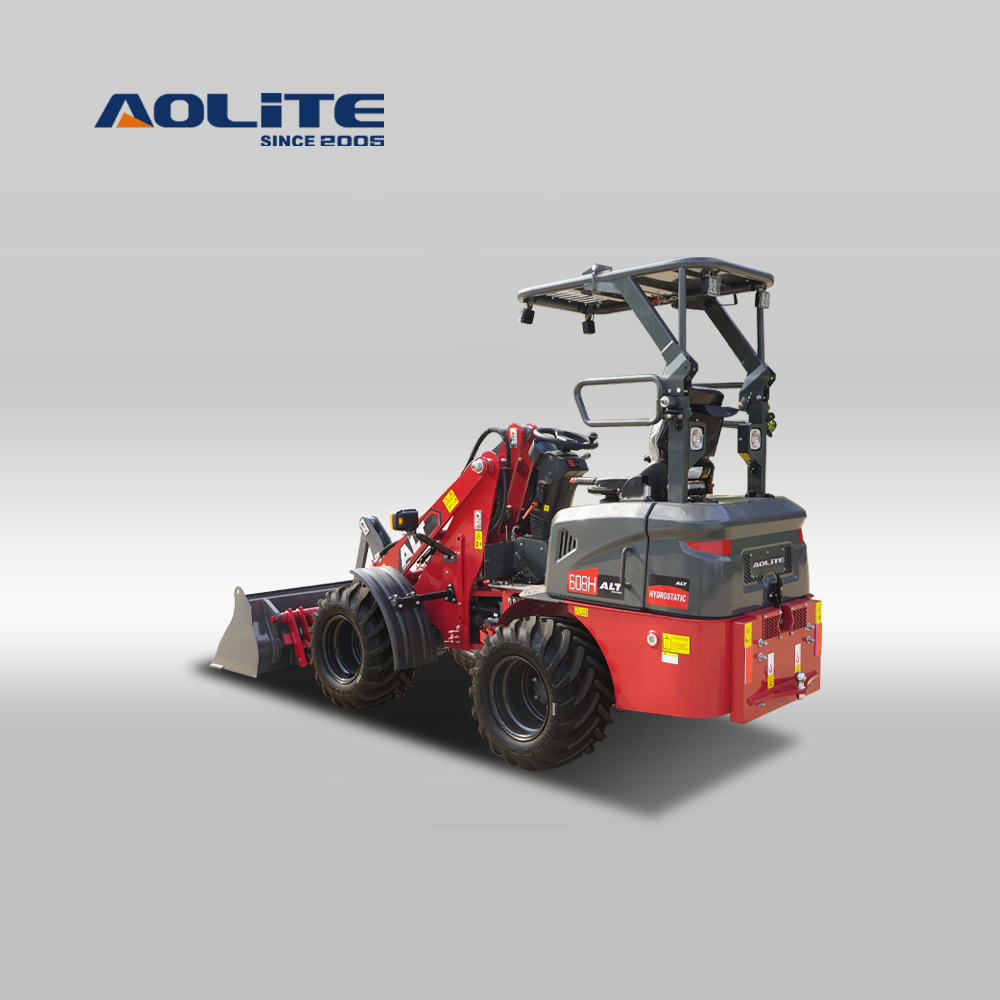

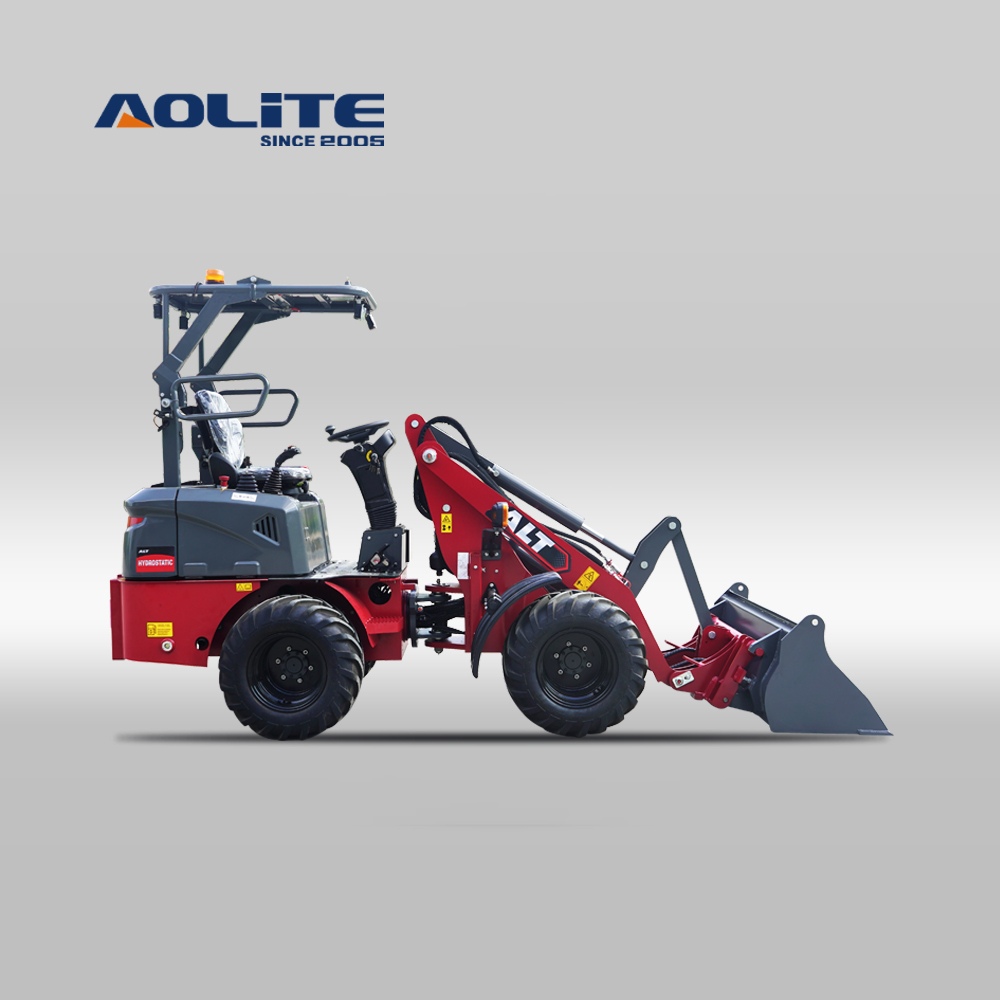

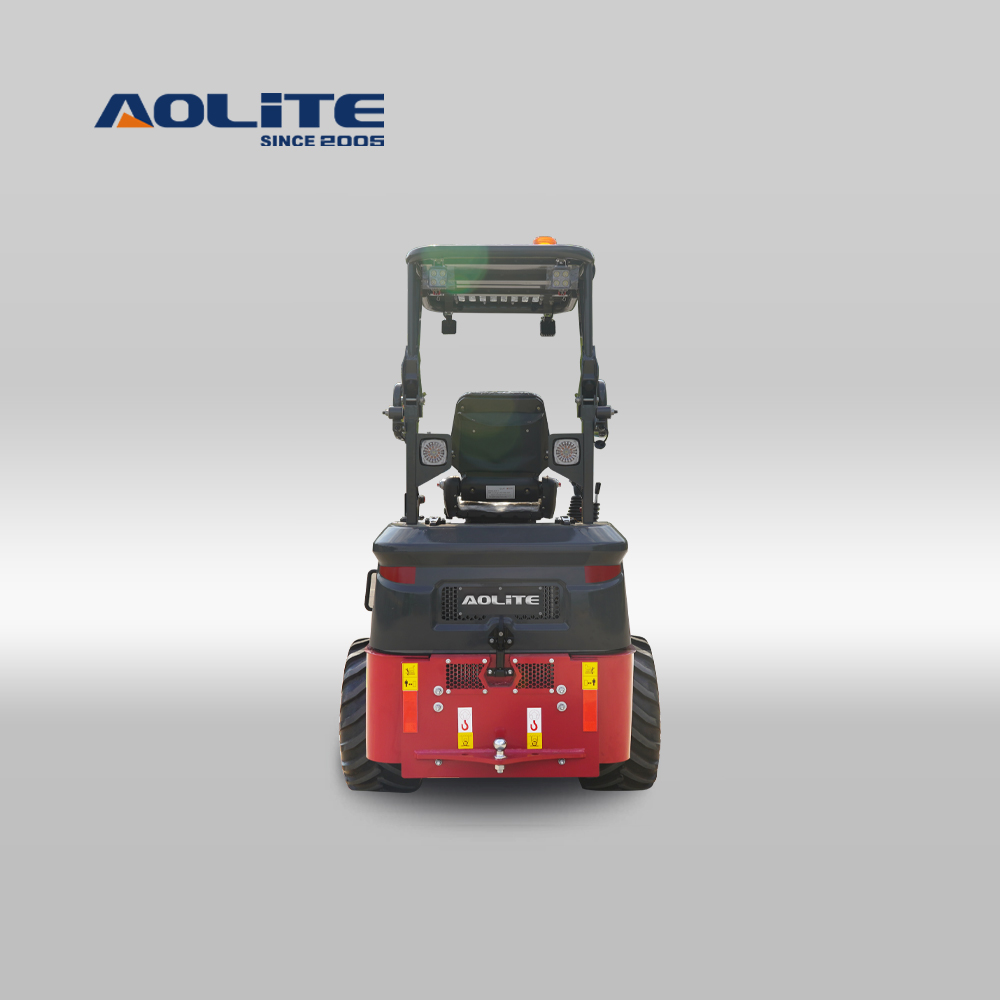

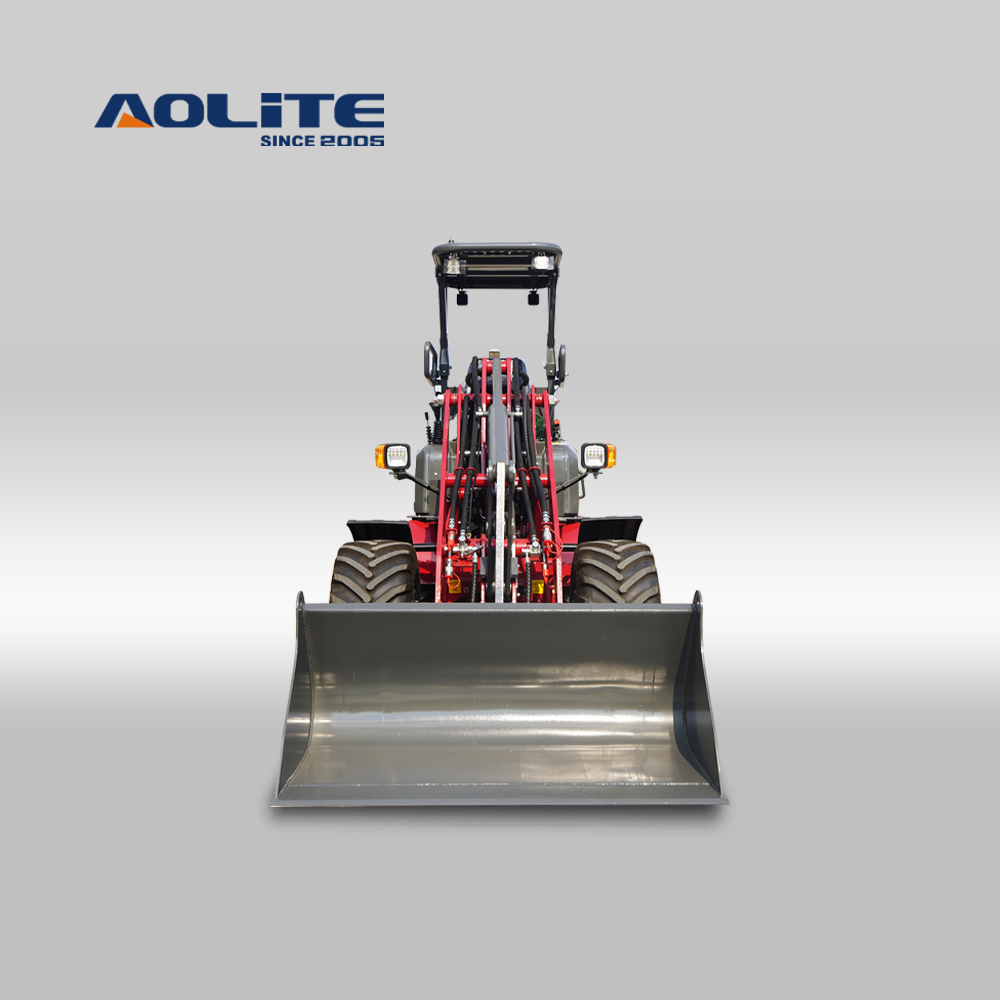

608H canopy version wheel loader
—Built for 800kg Daily Loads
Rated load 800kg, Capacity of bucket 0.25m³, powered by Yanmar 3TNV88F-ESSY diesel engine – reliable performance for farms, warehouses, and small construction sites.
—Choose Your Comfort Level
Cab version (2200kg) for weather/dust protection, or simple canopy version (2050kg) for ventilation and lower weight , both with CE Certification.
—Hydrostatic Drive for Smooth Control
Variable displacement piston pump with hydrostatic transmission, low speed 6km/h, high speed 12km/h , infinitely variable speed control and reduced operator fatigue.
—Compact Agility in Tight Spaces
Max. steering angle ±45°, length 3810mm, width 1260mm, wheel base 1380mm , navigate narrow aisles, doorways, and crowded job sites with ease.
— 4 sets in 1*20GP container —8 sets in 2*40HQ container
Name / Category |
608H canopy (CE Certification) |
Rated load (kg) |
800 kg |
Capacity of bucket (m³) |
0.25m³ |
Overall weight (kg) |
2050 kg |
Max. dumping height (mm) |
2170 mm |
Dumping distance (mm) |
405 mm |
Gearbox model |
Variable displacement piston pump |
Transmission model |
Hydrostatic |
Low speed (Km/h) |
6 km/h |
High speed (Km/h) |
12 km/h |
Max. steering angle (°) |
±45° |
length (mm) |
3810 mm |
width (mm) |
1260 mm |
Height (mm) |
2270 mm |
Bucket width (mm) |
1130 mm |
Wheel base (mm) |
1380 mm |
Wheel tread (mm) |
980 mm |
Min. ground clearance (mm) |
200 mm |
Engine model |
Yanmar 3TNV88F-ESSY |
Engine brand |
Yanmar Engine |
Rated power (kW) |
17.3 kw |
Rated speed (r/min) |
2200 r/min |
Axle model |
06C axle |
Tyer |
26×12.00-12 |
Working brake |
Drum hydraulic brake |
Parking brake |
Drum hand brake |
