Product category: backhoe loader
Name: BL90A center-pivot version backhoe loaders
Product brief description:
BL90A Center-pivot version backhoe loaders
— Core Upgrade: Optional CARRARO Axles
The BL90 now offers an optional core drivetrain upgrade with high-performance Italy CARRARO axles. This upgrade is based on rigorous validation of Carraro systems' long-term reliability, resilience in severe conditions, and superior lifecycle cost benefits.
— Performance & Control Enhancement
Benefiting from CARRARO axles, the machine features electronically controlled 4WD and synchronizer shift technology, ensuring high transmission efficiency, smooth shifting, and responsive operation, significantly improving productivity and operator experience.
— Reliability & Durability Strengthening
CARRARO axles employ mature processes with low failure rates. Their wet brakes resist dust and water, extending service intervals, specifically designed for gritty, damp environments like mines, farmland, and construction sites.
— Traction & Gradability Optimization
Optional rear axle differential locks enhance traction and stability on slopes and muddy terrain, improving performance in severe conditions.
— 1 set in 1*40HQ container
— 3 sets in 2*40HQ container

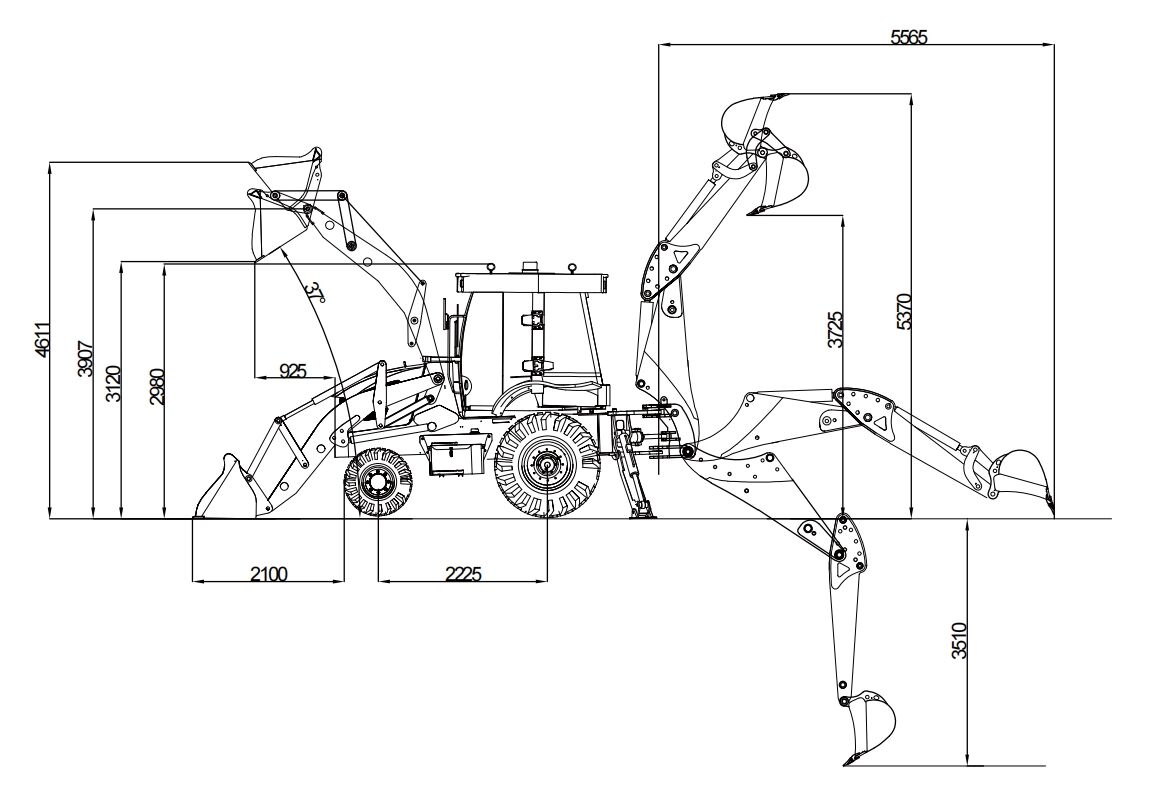

| Rated load (kg) | 2500 |
| Bucket capacity (m³) | 1.2 |
| Overall Weight (kg) | 8800 |
| Max. Dumping height (mm) | 3120 |
| Dumping distance (mm) | 925 |
| Gearbox model | YJ280 |
| Transmission mode | Hydraulic torque converter |
| Low gear (km/h) | 5 |
| High gear (km/h) | 40 |
| Max. steering angle | 土 45° |
| Length (mm) | 6400 |
| Width (mm) | 2460 |
| Height (mm) | 2980 |
| Bucket width (mm) | 2460 |
| Wheel base (mm) | 2220 |
| Wheel tread (mm) | F1900/R1825 |
| Min. ground clearance (mm) | 310 |
| Engine model | WP4G100E22 |
| Engine brand | Weichai |
| Rated power (kW) | 73 |
| Rated speed(r/min) | 2200 |
| Alxe model | FWZZD75D RZL30 |
| Tyre | F12.5/70-18/R16.9-28 |
| Working break | Air push oil |
| Parking break | Caliper disc brake |
| Turning raduis(outside of bucket) (mm) | 6600 |
| Backhoe bucket capacity (m³) | 0.3 |
| Max. digging depth (mm) | 3510 |
| Max. digging radius (mm) | 5565 |
| Max. dumping height (mm) | 3725 |
| Max. digging height (mm) | 5370 |
| Max.digging radius lifting capacity (kg) | 1220 |
