Product category: Wheel loader
Name: 936T diesel wheel loader

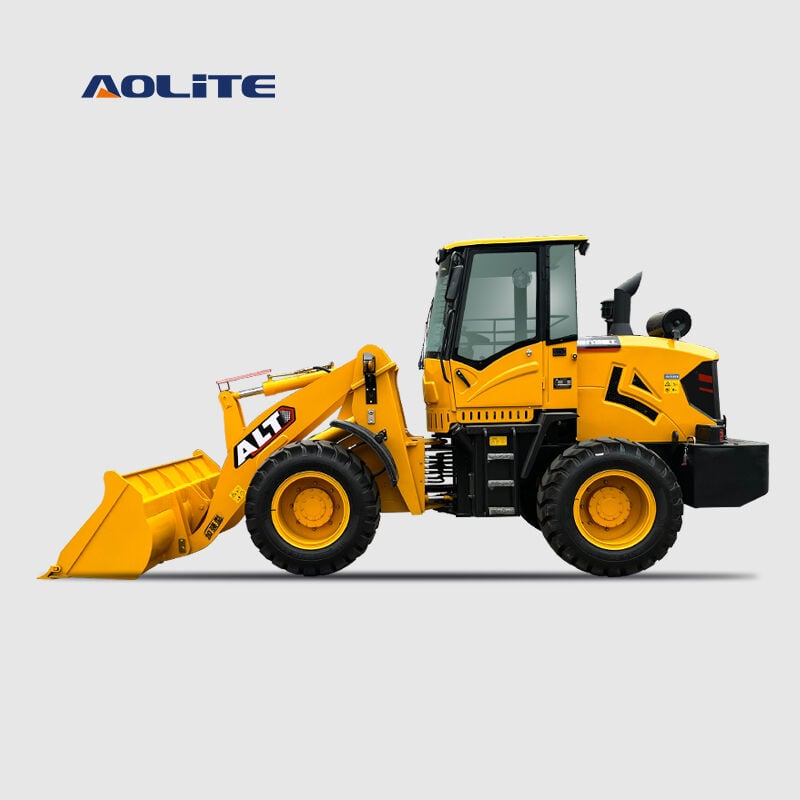

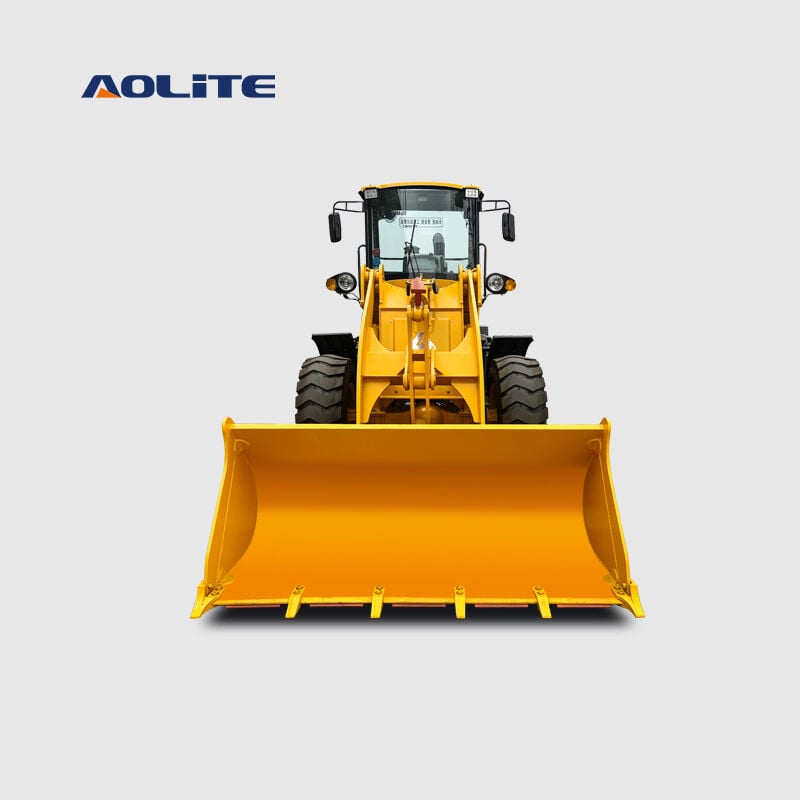

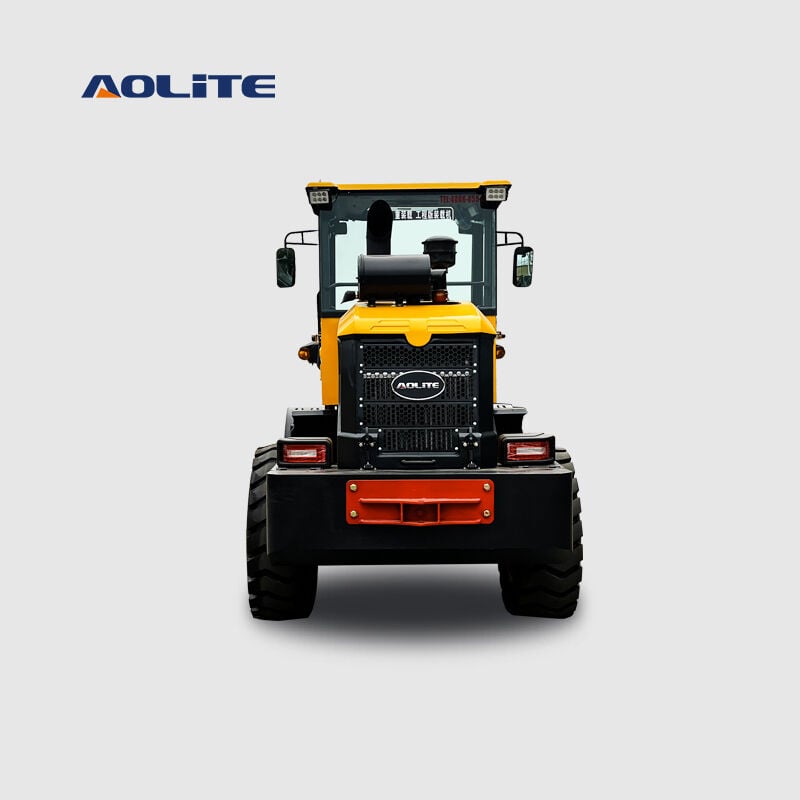

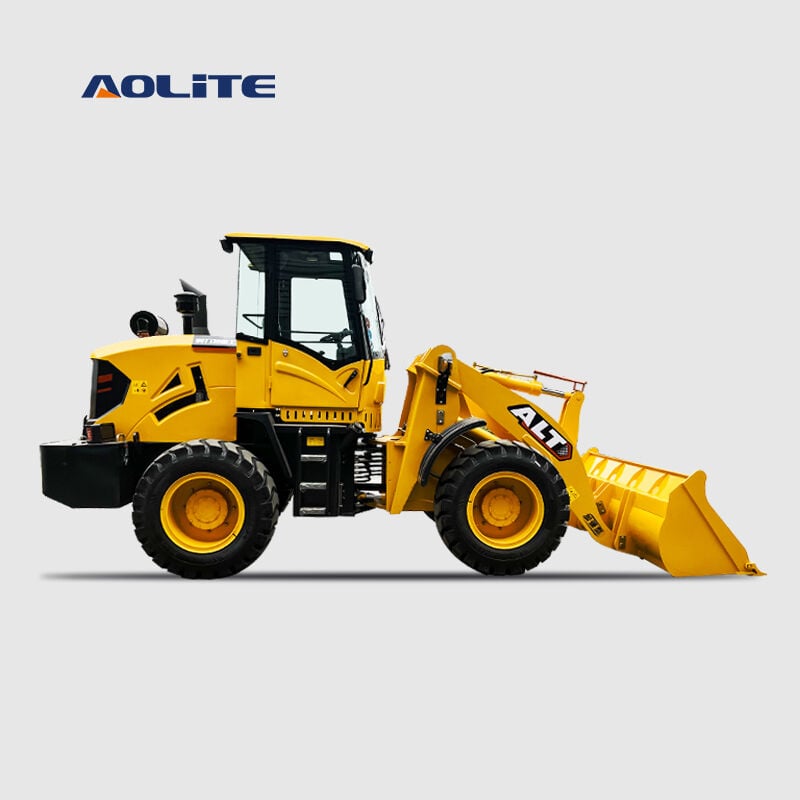

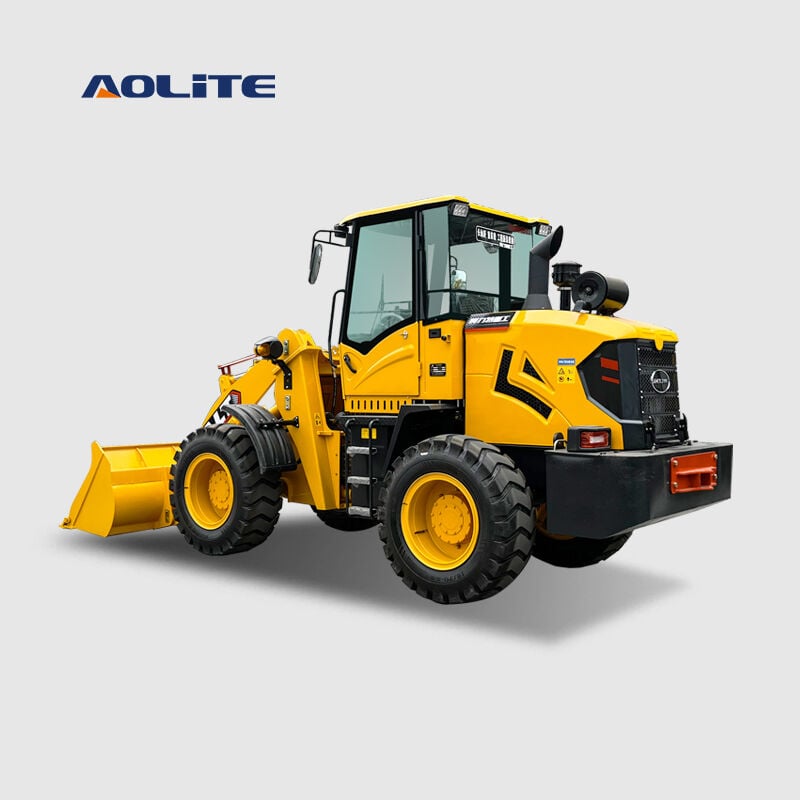

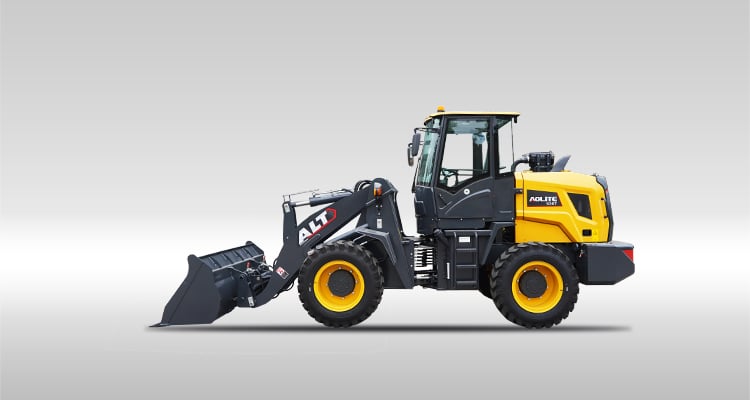

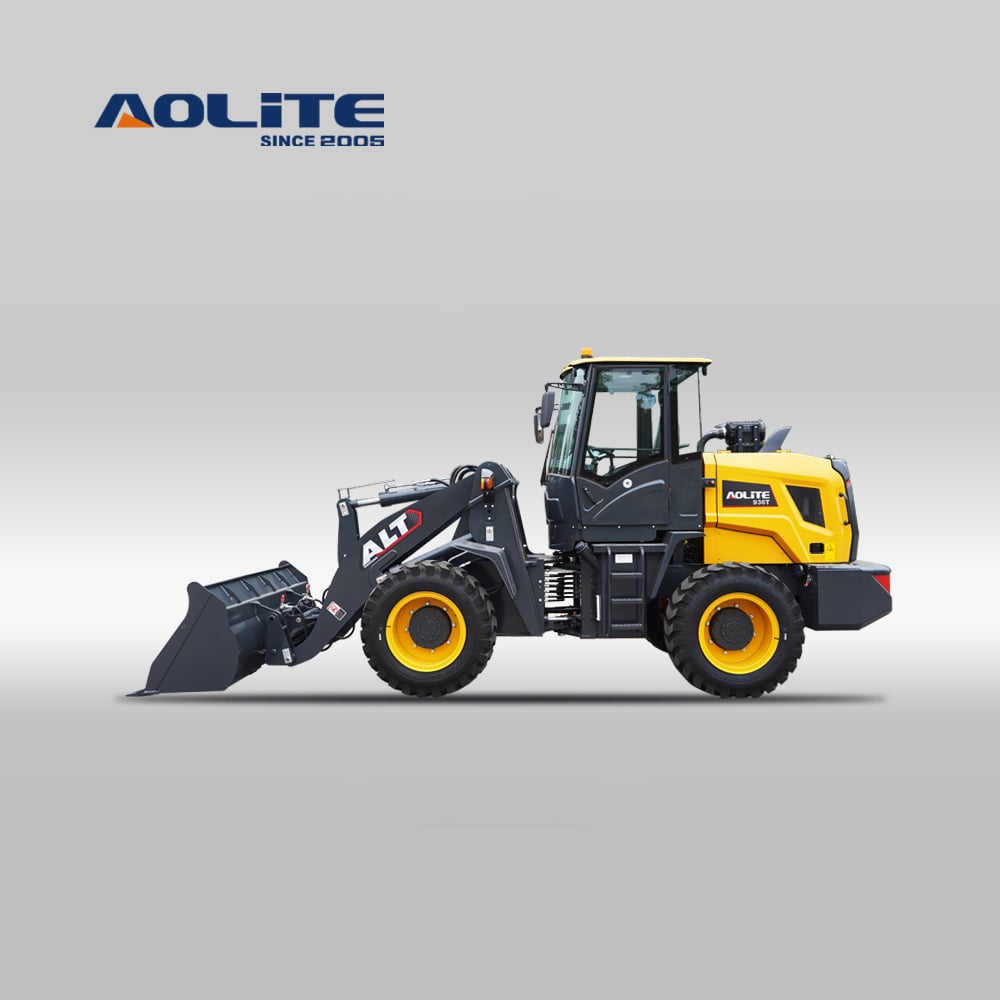

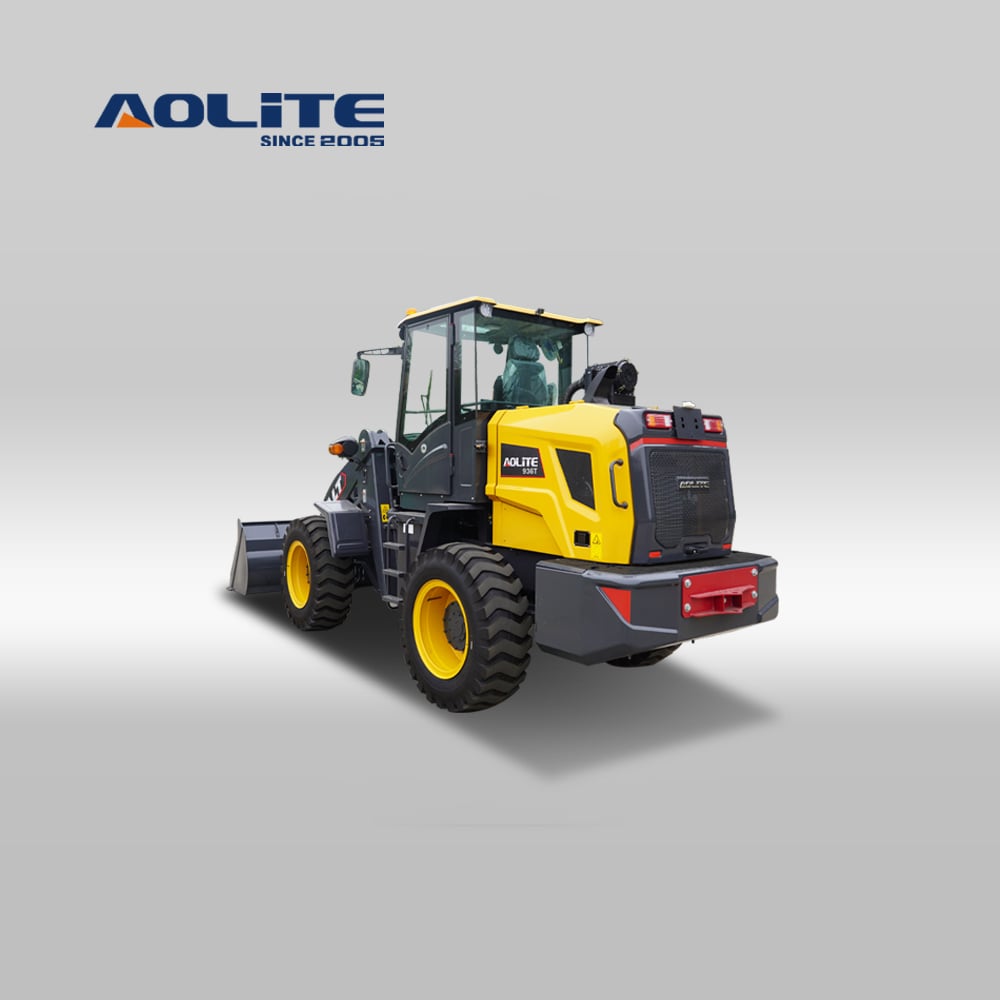

936T Diesel Wheel Loader
— Strong Power for Heavy-Duty Work
Powered by a Yunwei engine with 92kW output, the 936T delivers reliable performance for construction sites, farms, and material yards. With a 2200kg rated load and 1.1m³ bucket, it moves more material in fewer cycles.
— Load High Trucks with Ease
A maximum dumping height of 3400mm and dumping distance of 1000mm make loading high-side trucks and hoppers effortless, while the ±35° steering angle keeps you agile in tight working areas.
— Fast Travel, Smooth Operation
The hydraulic torque converter transmission with 280F gearbox delivers smooth power and effortless direction changes. Travel speeds of 6km/h and 22km/h let you switch between precise loading and quick site transfer.
— Built Tough for Rough Terrain
A heavy-duty hub reduction axle, 16/70-24 tyres, and 310mm ground clearance keep the 936T stable on uneven ground. Air-over-hydraulic working brake and caliper disc parking brake provide dependable stopping power.
Specifications:
| Rated load (Kg) | 2200 |
| Bucket capacity (m³) | 1.1 |
| Overall weight (Kg) | 5900 |
| Max. dumping height (mm) | 3400 |
| Dumping distance (mm) | 1000 |
| Gearbox model | 280F |
| Transmission mode | Hydraulic torque converter |
| Low gear (Km/h) | 6 |
| High gear (Km/h) | 22 |
| Max. steering angle | ±35° |
| Length (mm) | 6510 |
| Width (mm) | 2270 |
| Height (mm) | 2920 |
| Bucket width (mm) | 2270 |
| Wheel base (mm) | 2595 |
| Wheel tread (mm) | 1660 |
| Min. ground clearance (mm) | 310 |
| Engine model | YN48GBZ |
| Engine brand | Yunnei |
| Rated power (kW) | 92 |
| Rated speed (r/min) | 2400 |
| Alxe model | Heavy-duty hub reduction axle |
| Tyre | 16/70-24 |
| Working brake | Air over hydraulic |
| Parking brake | Caliper disc brake |
