Product category: wheel loader

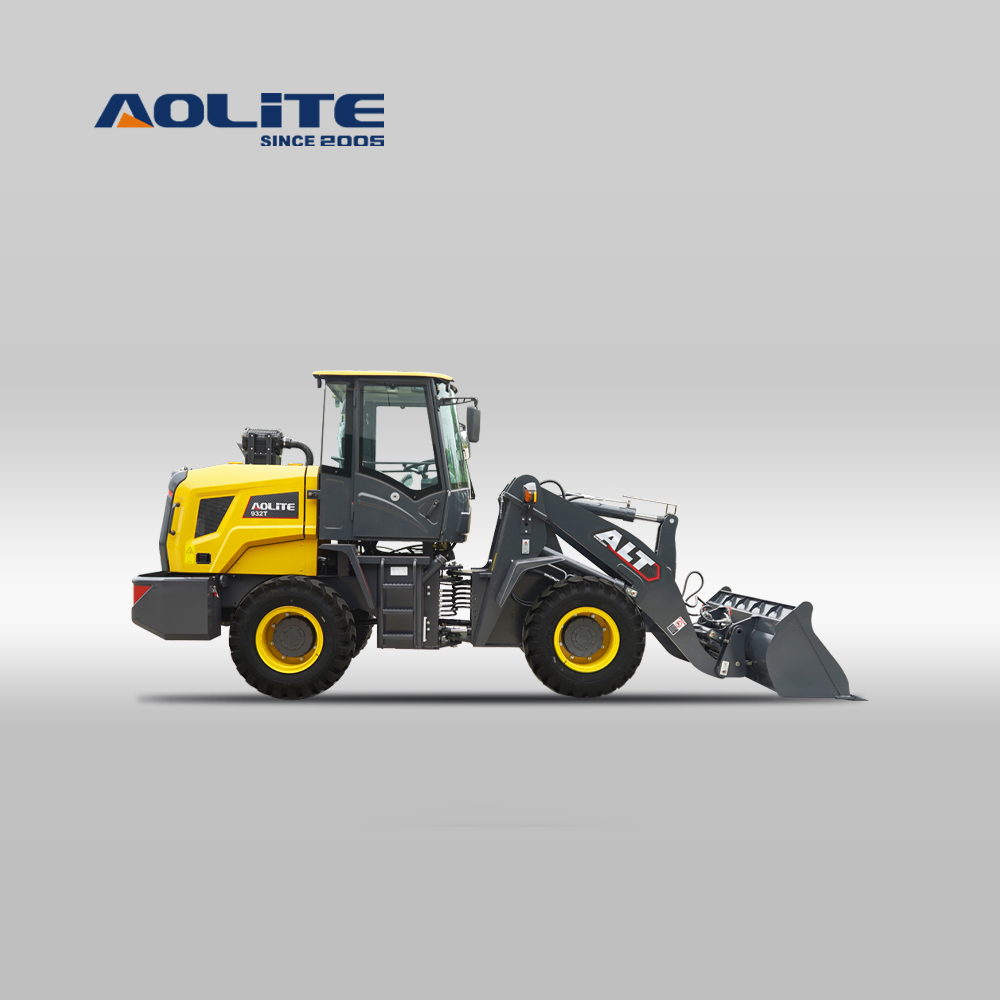

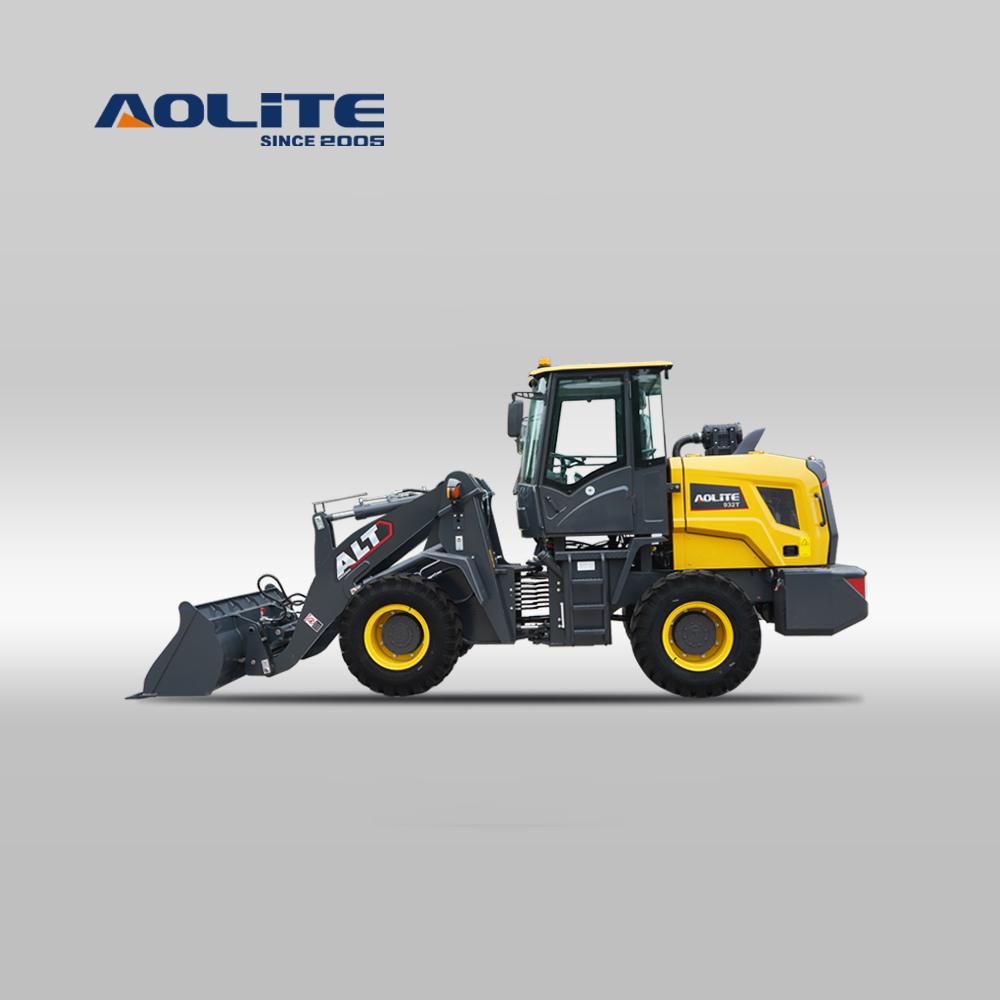

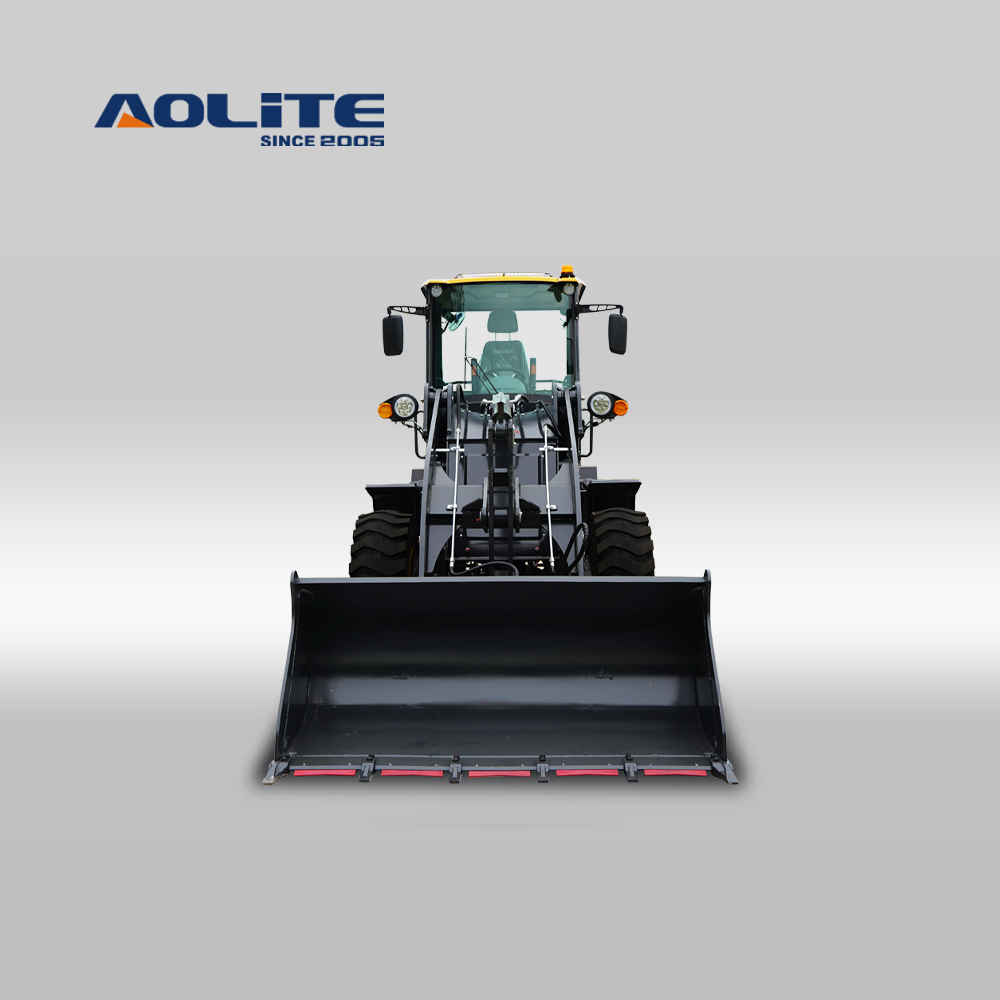

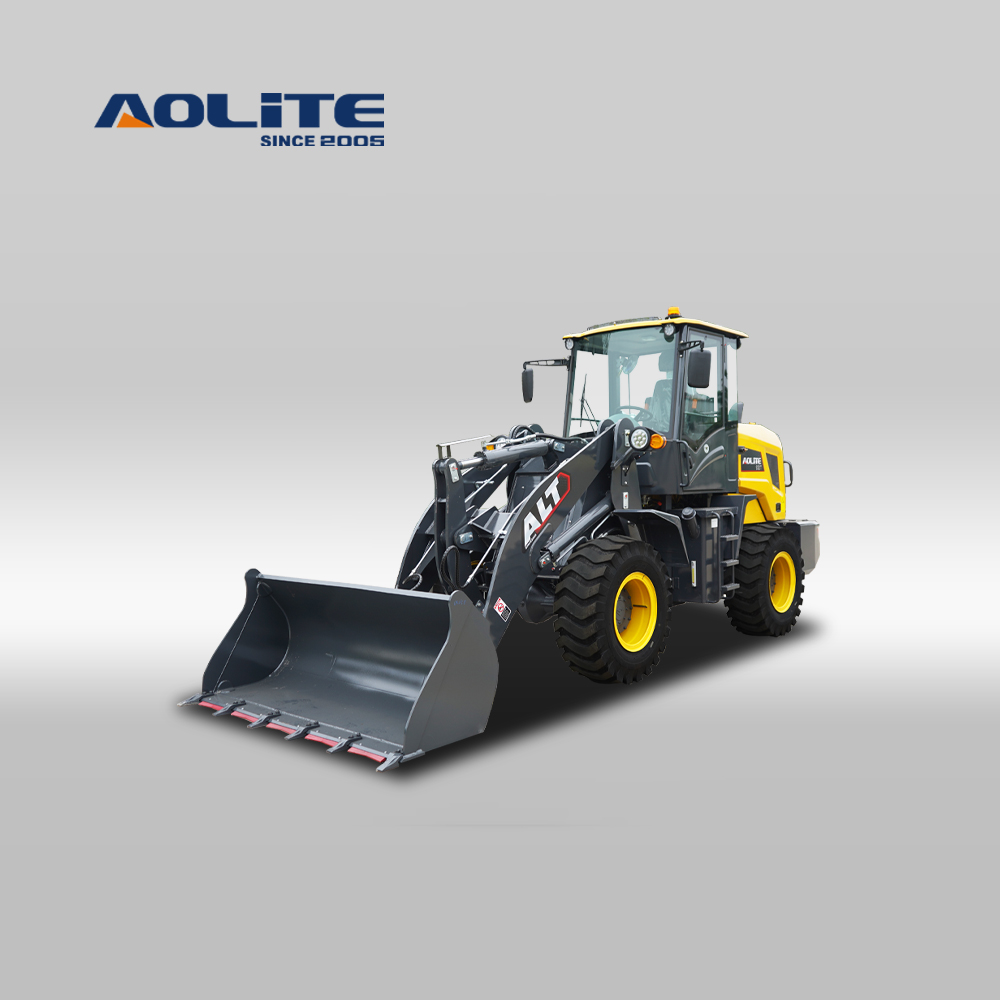

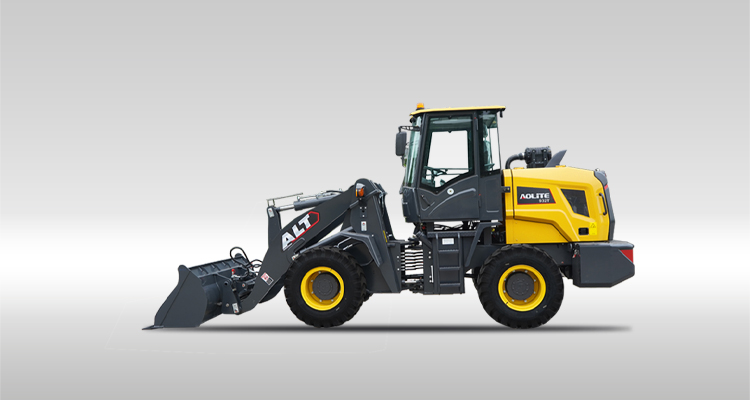

Name: 932T diesel wheel loader
932T Diesel Wheel Loader
—Engine Protection for Extreme Conditions
Dual filtration system comes standard, suitable for extreme conditions and extending engine life, keeping your Yunnei engine running reliably even in dusty job sites.
—Patented Frame & Night Visibility

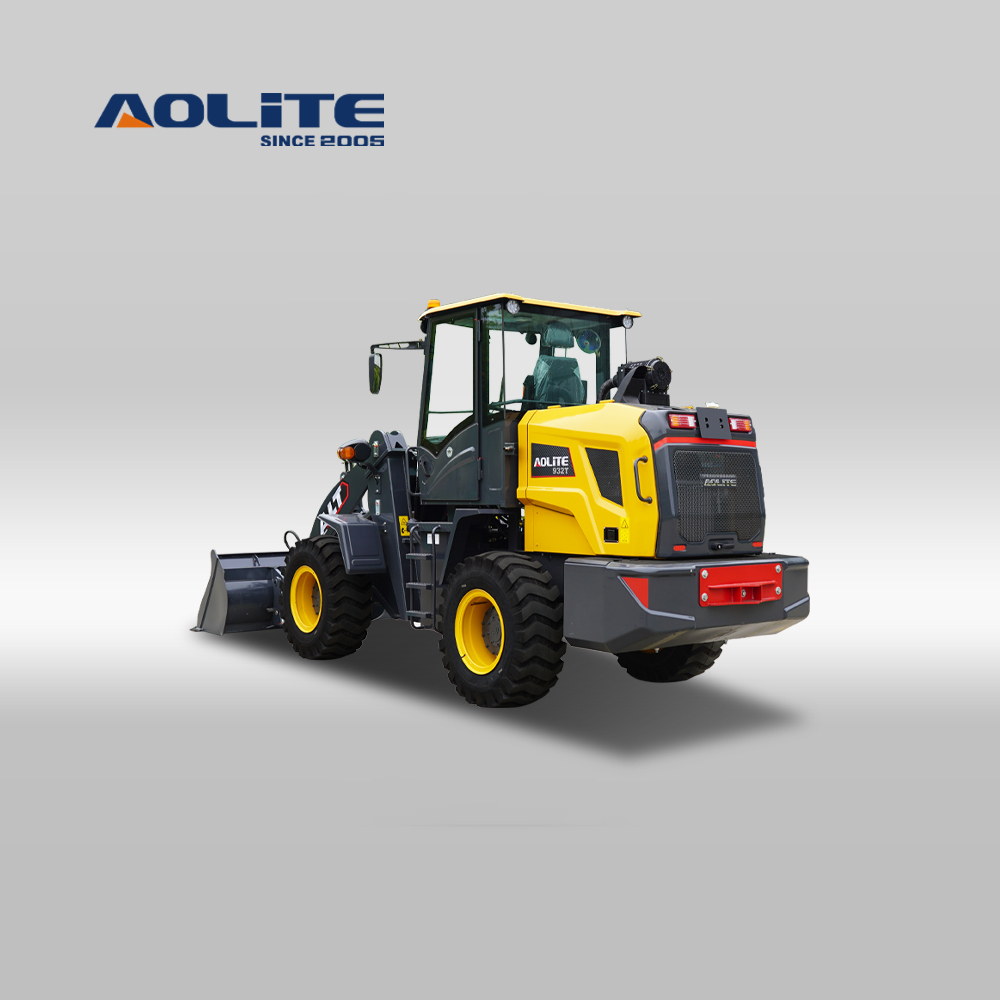

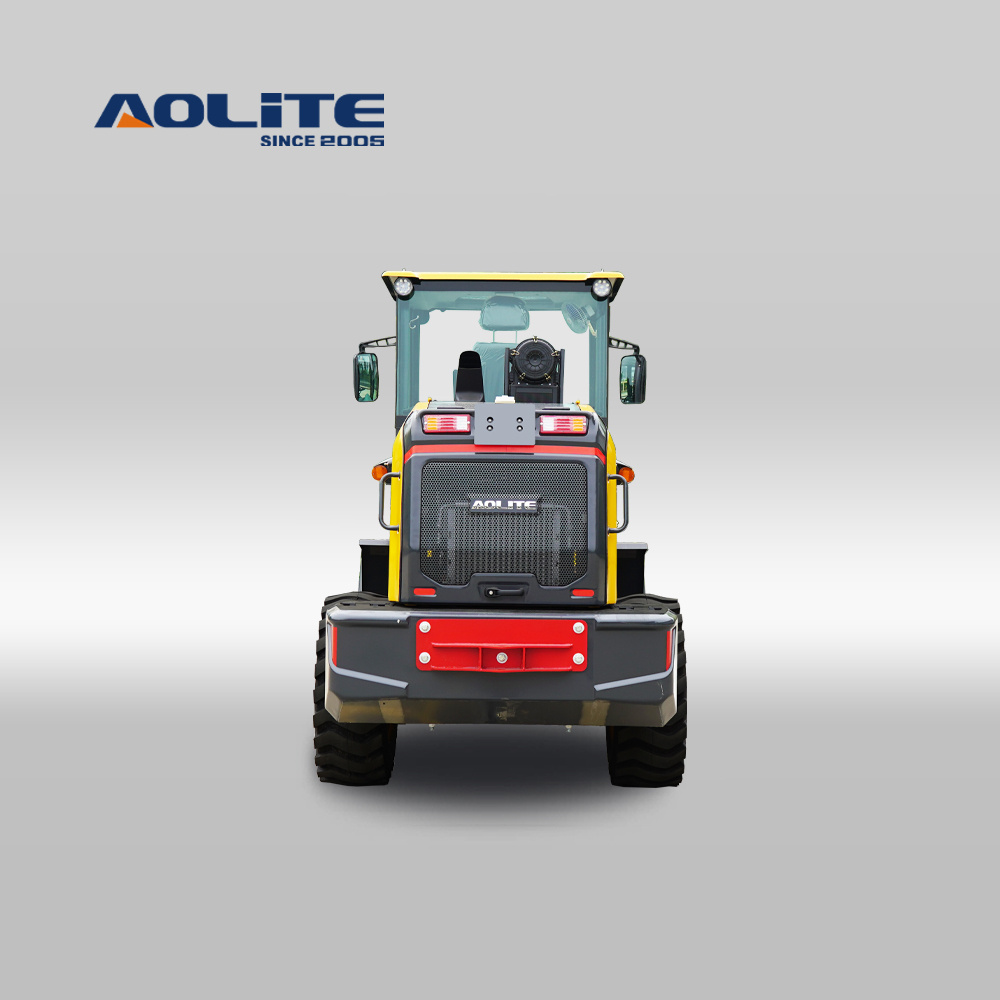

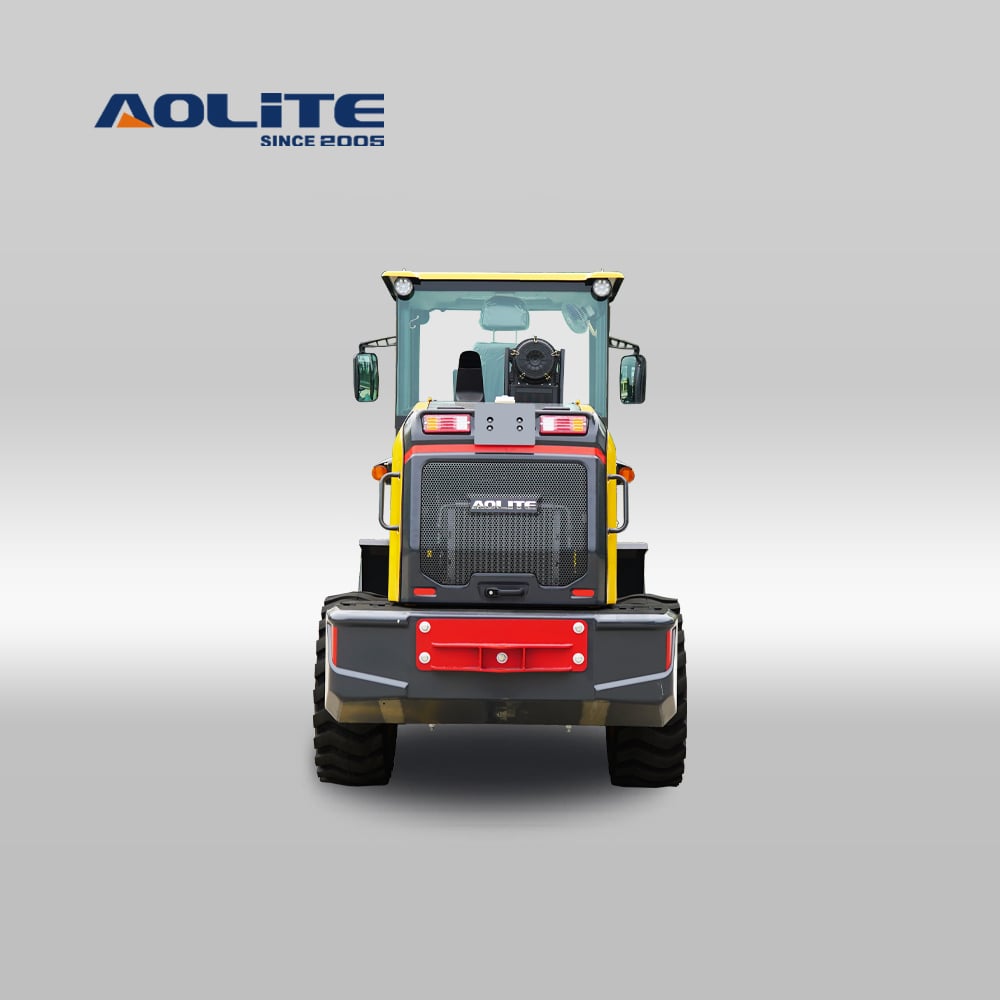

Patented sloped "tiger-head" front frame enhances reliability and improves forward visibility. High-brightness LED rear lights ensure excellent visibility for night operations, so you can work safely after dark.
—Hydraulic Torque Converter Transmission
With 265F gearbox, hydraulic torque converter transmission, low gear 6km/h and high gear 20km/h, the 932T delivers smooth power delivery and effortless direction changes.
—Advanced Thermal Management

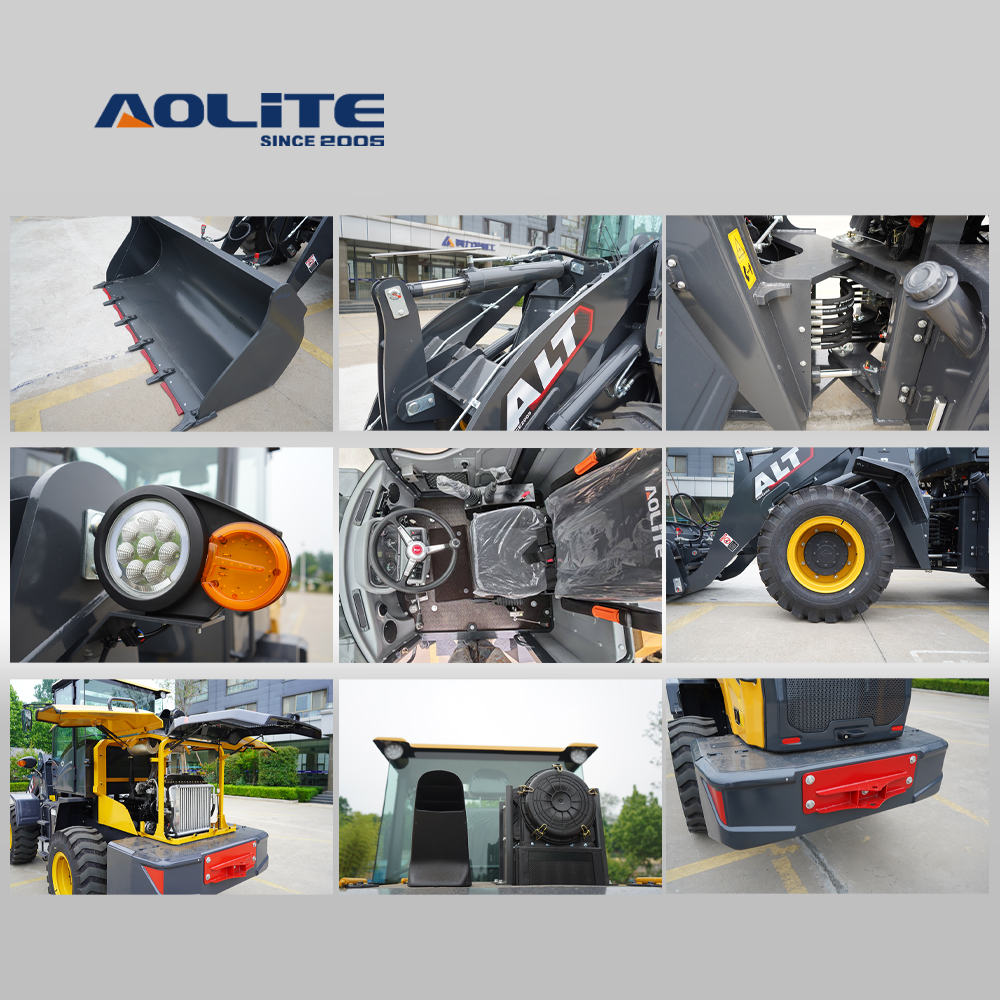

Trapezoidal radiator with tube-fin oil cooler prevents clogging, avoiding overheating in extreme working conditions. Combined with the three-door rear hood, maintenance is quick and heat dissipation is optimized.
Rated load (Kg) |
1900 |
Bucket capacity (m³) |
1 |
Overall weight (Kg) |
5320 |
Max. dumping height (mm) |
3350 |
Dumping distance (mm) |
900 |
Gearbox model |
265F |
Transmission mode |
Hydraulic torque converter |
Low gear(Km/h) |
6 |
Highgear (Km/h) |
20 |
Max. steering angle |
±35° |
Length (mm) |
6470 |
Width (mm) |
2070 |
Height (mm) |
2880 |
Bucket width (mm) |
2070 |
Wheel base (mm) |
2525 |
Wheel tread (mm) |
1570 |
Min. ground clearance(mm) |
300 |
Engine model |
YN38GBZ |
Engine brand |
Yunnei |
Rated power(kW) |
76 |
Rated speed (r/min) |
2400 |
Alxe model |
Hub reduction axle |
Tyre |
16/70-20 |
Working brake |
Air over hydraulic |
Parking brake |
Caliper disc brake |
—2 sets in 1*40HQ container
