Product category: wheel loader
Name: 630T diesel wheel loader

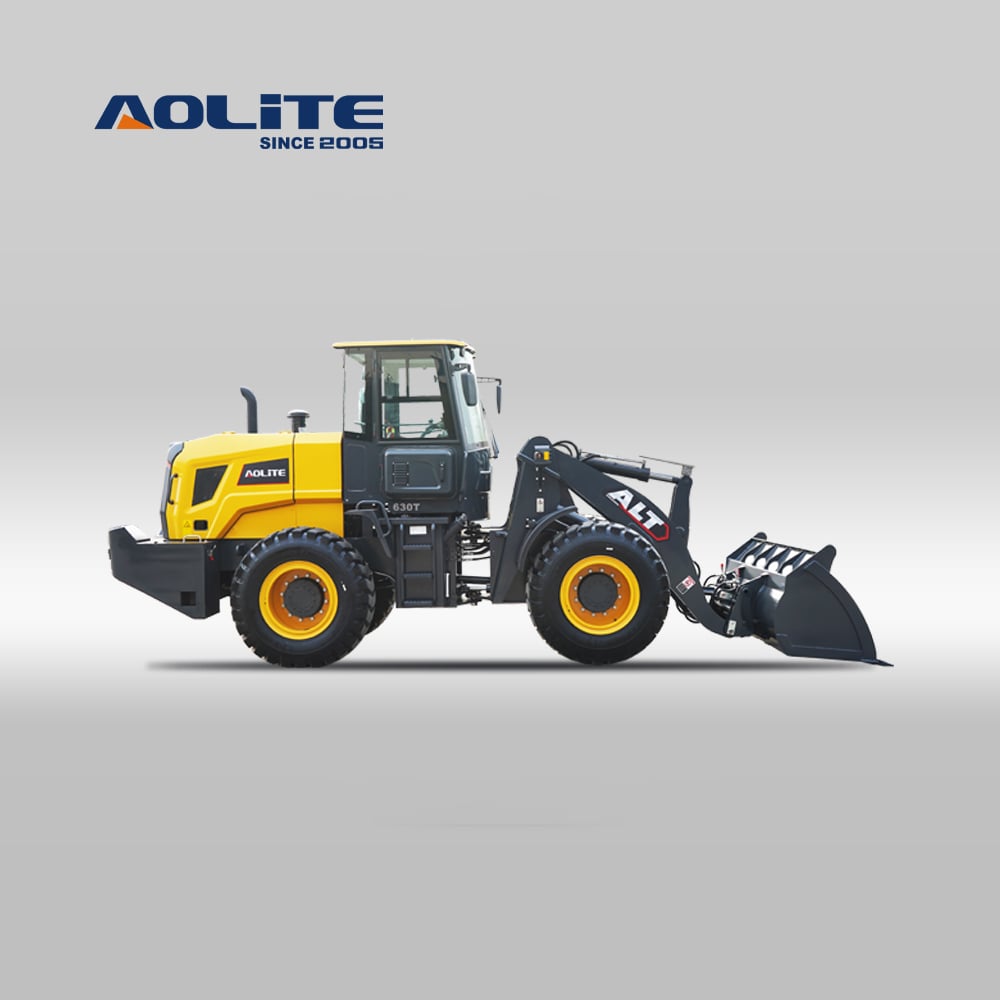

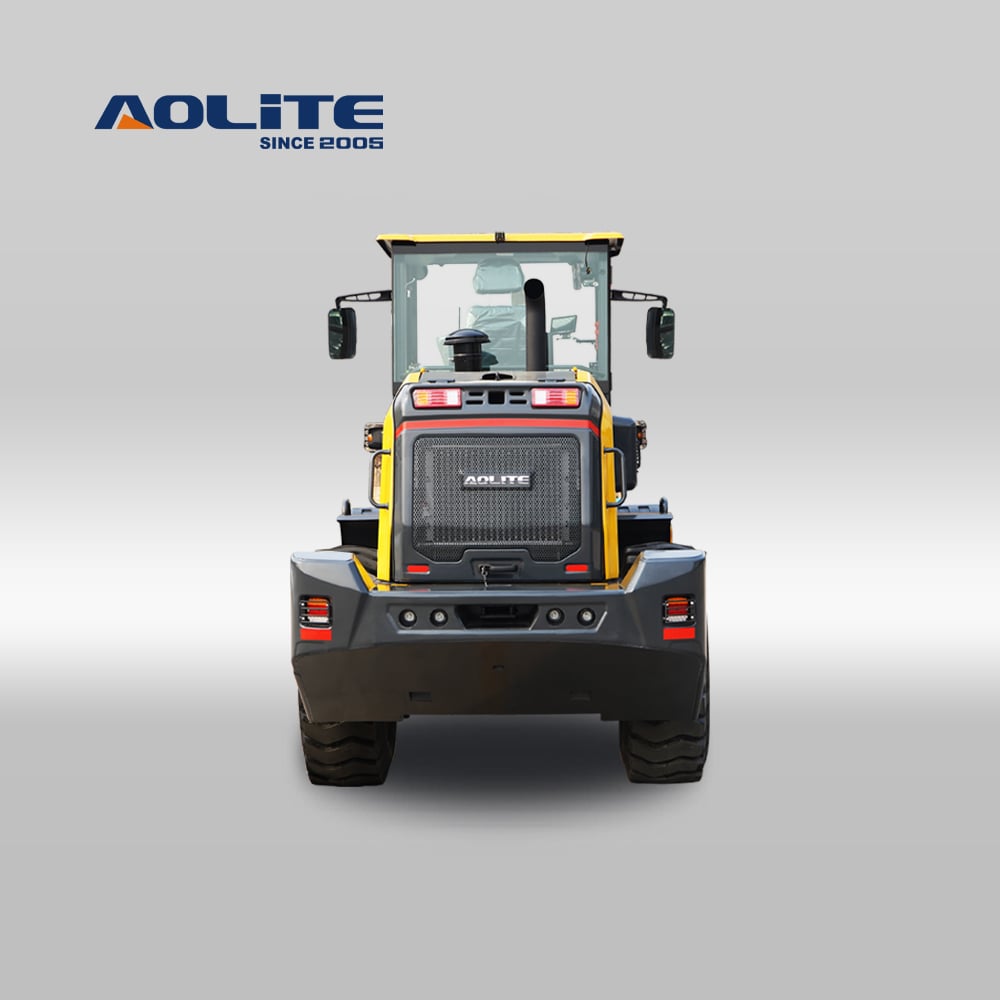

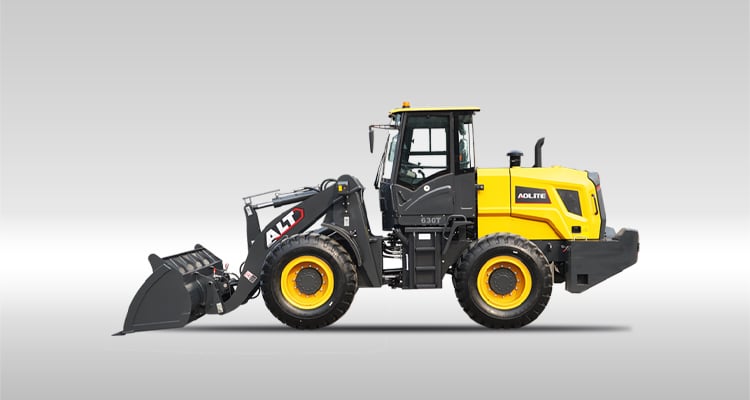

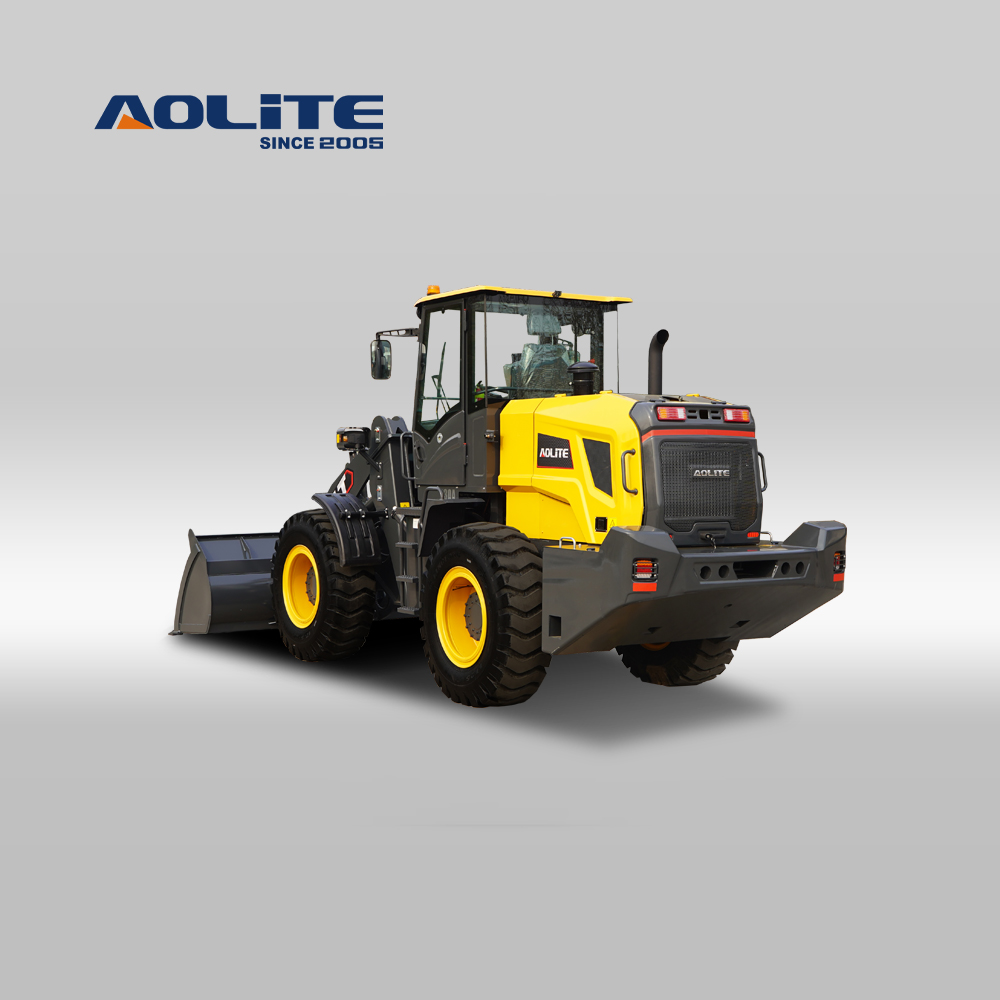

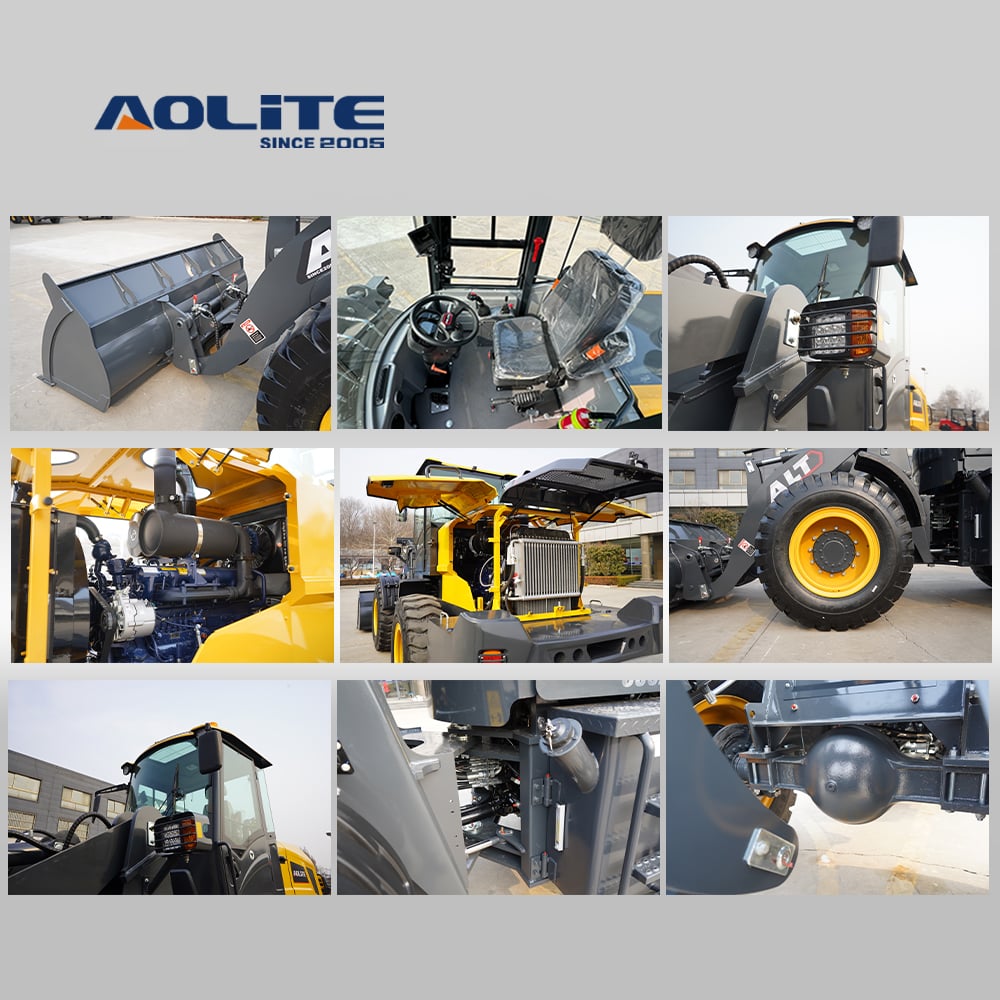

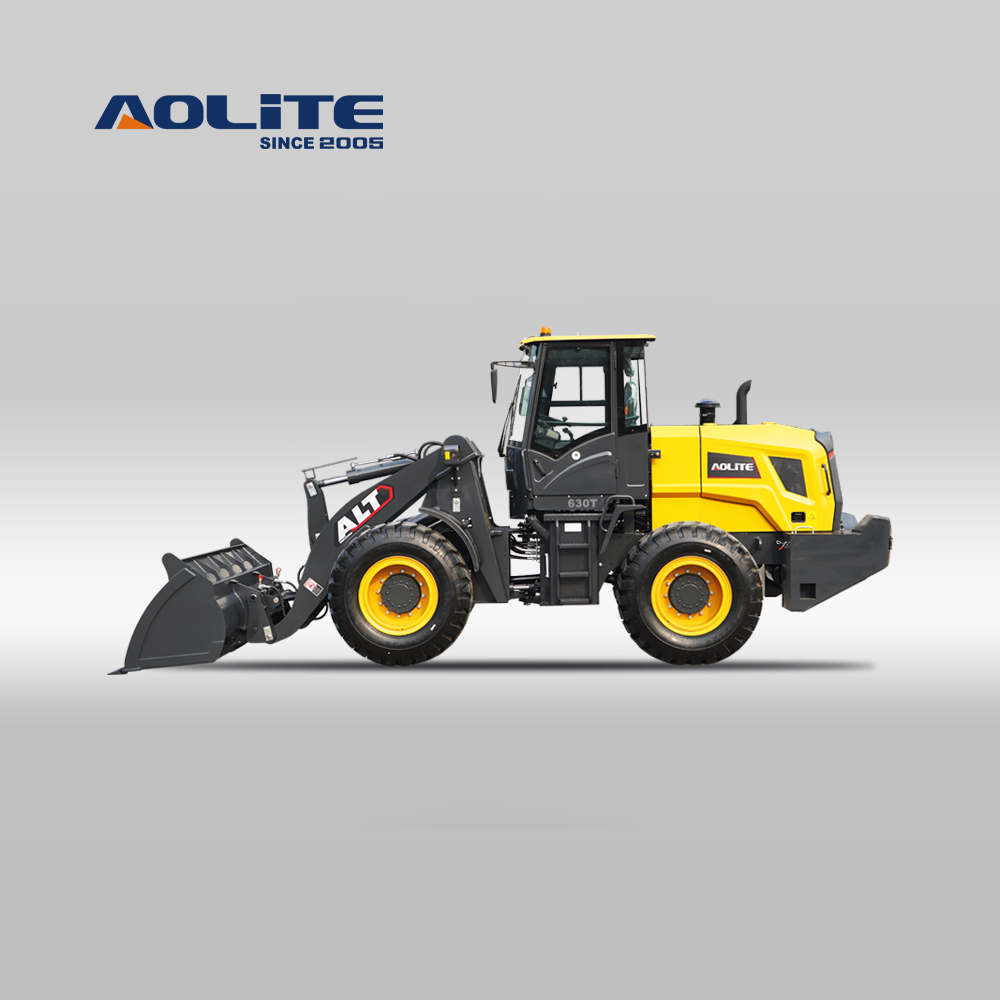

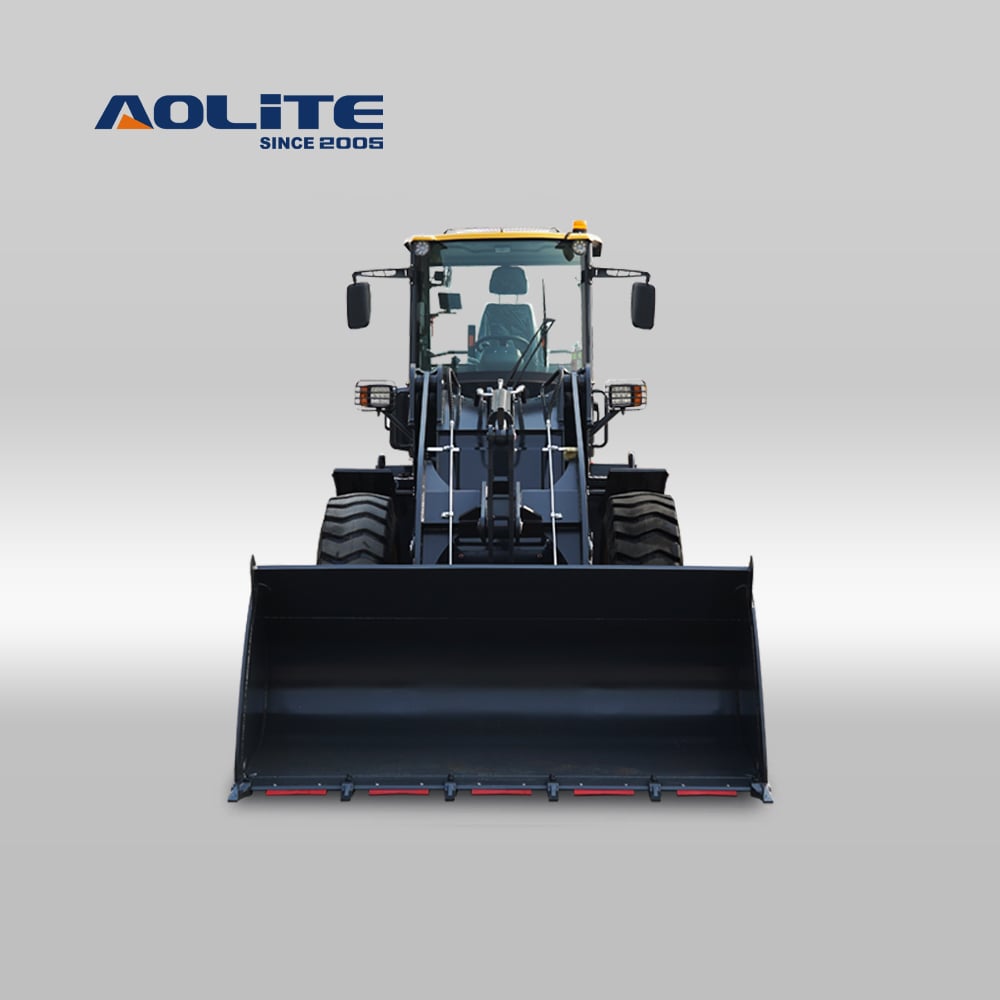

630T Diesel Wheel Loader
—— Powerful Engine System
Equipped with Weichai Deutz 6105 turbocharged diesel engine, rated power 92kW, featuring low-speed high torque and rapid power response, suitable for complex working conditions.
—— Efficient Transmission System
The 315F hydraulic torque converter gearbox paired with a 28-axle heavy-duty drive axle ensures high transmission efficiency, smooth gear-shifting, and excellent load adaptability.
—— Large Bucket Capacity
Bucket capacity of 1.4m³ and width of 2460mm, with a rated load of 3 tons, meeting the demands of medium-sized projects.
—— Comfortable Driving Experience
Ergonomic aviation-grade shock-absorbing seats with multi-directional adjustments effectively reduce fatigue during long operations.
—— 3 sets in 1*40HQ container
| Rated load (Kg) | 2500 |
| Bucket capacity ( m²) | 1.4 |
| Overall weight (Kg) | 8010 |
| Max. dumping height (mm) | 3500 |
| Dumping distance (mm ) | 1020 |
| Gearbax model | 315F |
| Transmission mode | Hydraulic torque corerter |
| Low gear (Km /h) | 6 |
| High gear (Km/h) | 35 |
| Max. steering angle | ±35° |
| Length (mm) | 7100 |
| Width (mm ) | 2460 |
| Height (mm) | 3040 |
| Bucket width (mm ) | 2460 |
| Wheelbase(mm) | 2655 |
| Wheeltread (mm ) | 1700 |
| Min.ground clearance (mm) | 370 |
| Engine model | WP6G125E22 |
| Engine brand | Weichai |
| Rated power (kW) | 92 |
| Rated speed (r/min) | 2200 |
| Alxe model | 28T Model |
| Tyre | 17.5-25 |
| Working brake | Air over hydraulic |
| Parking brake | Caliper disc brake |
