Product category: wheel loader

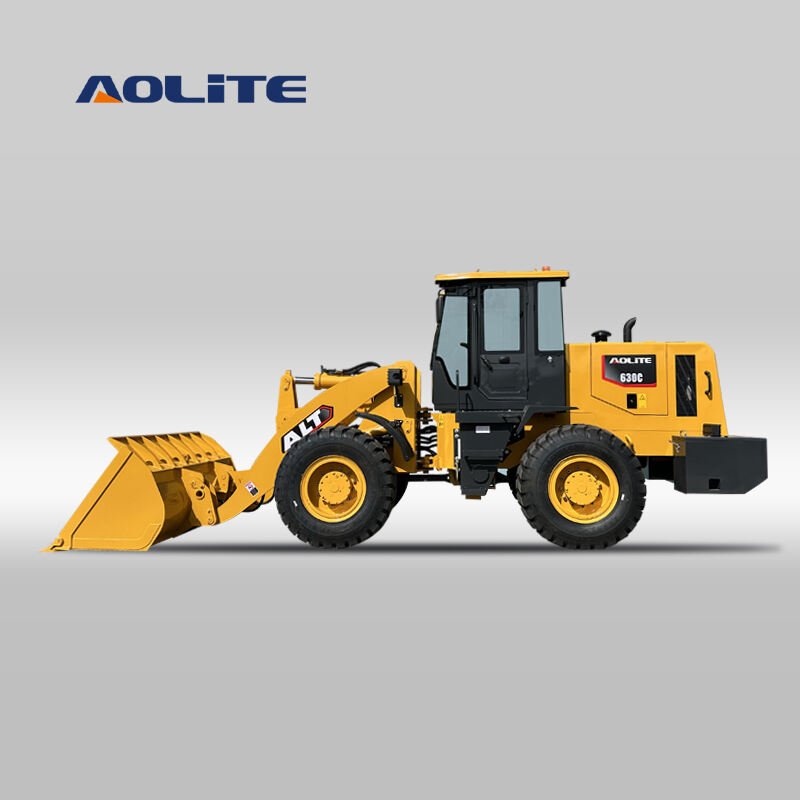

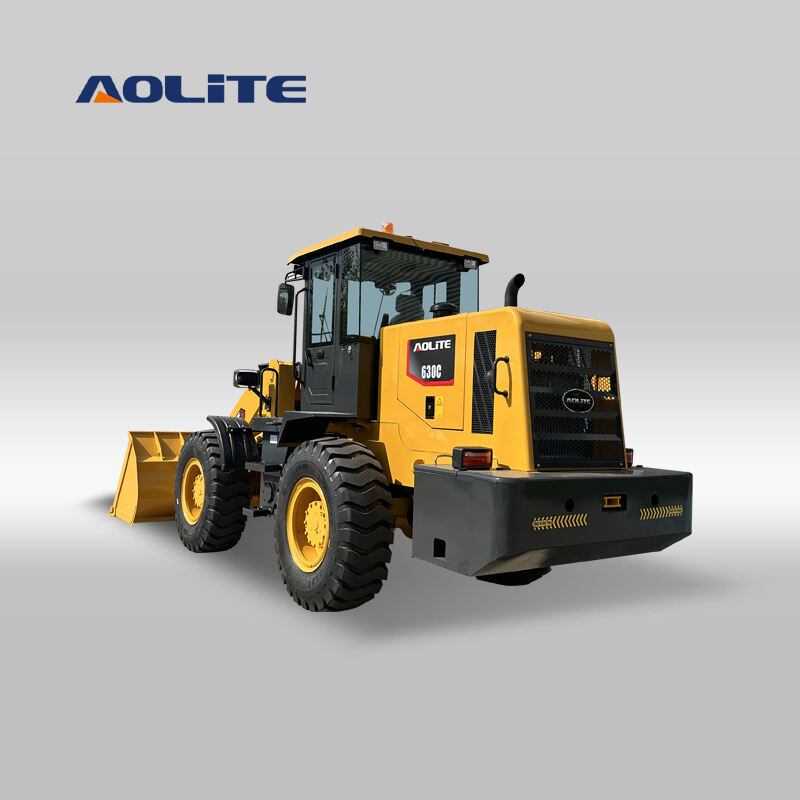

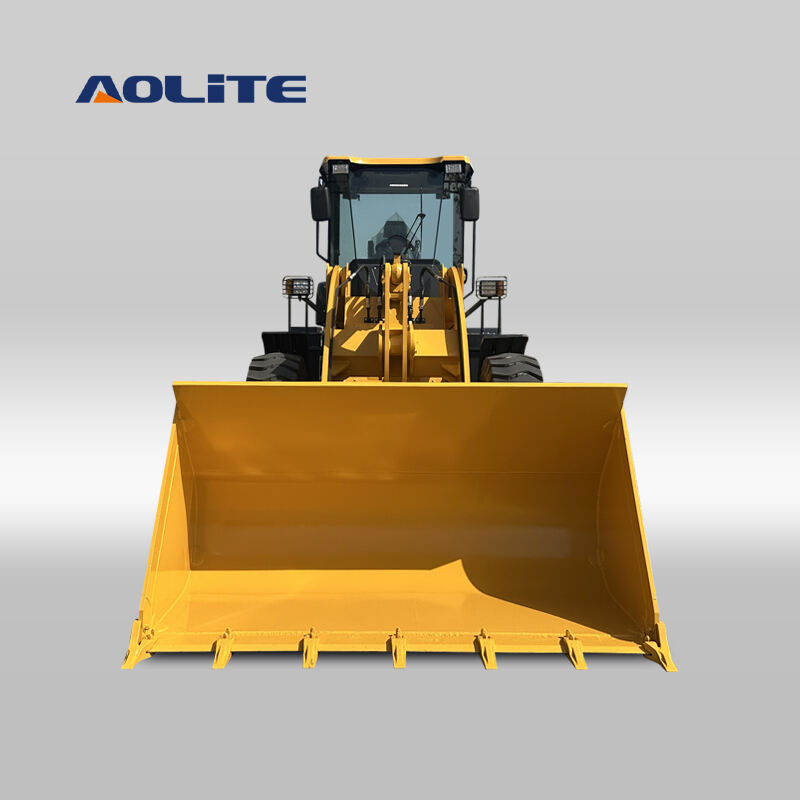

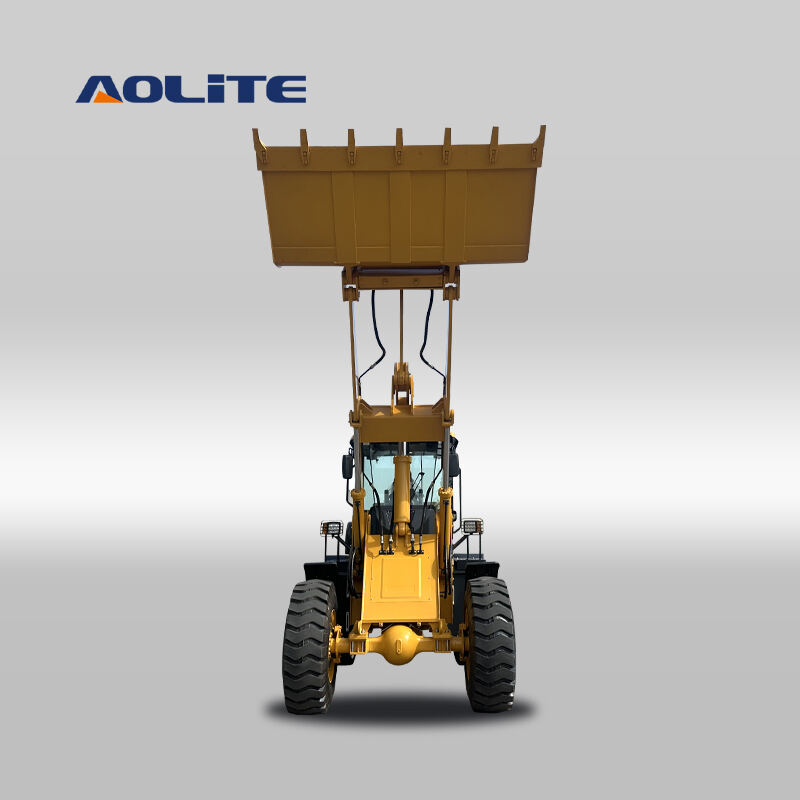

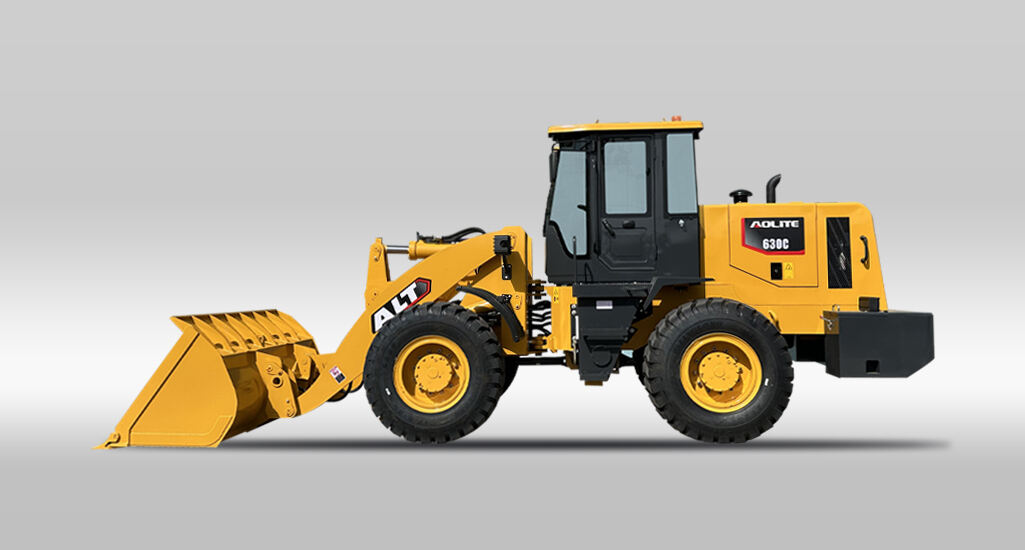

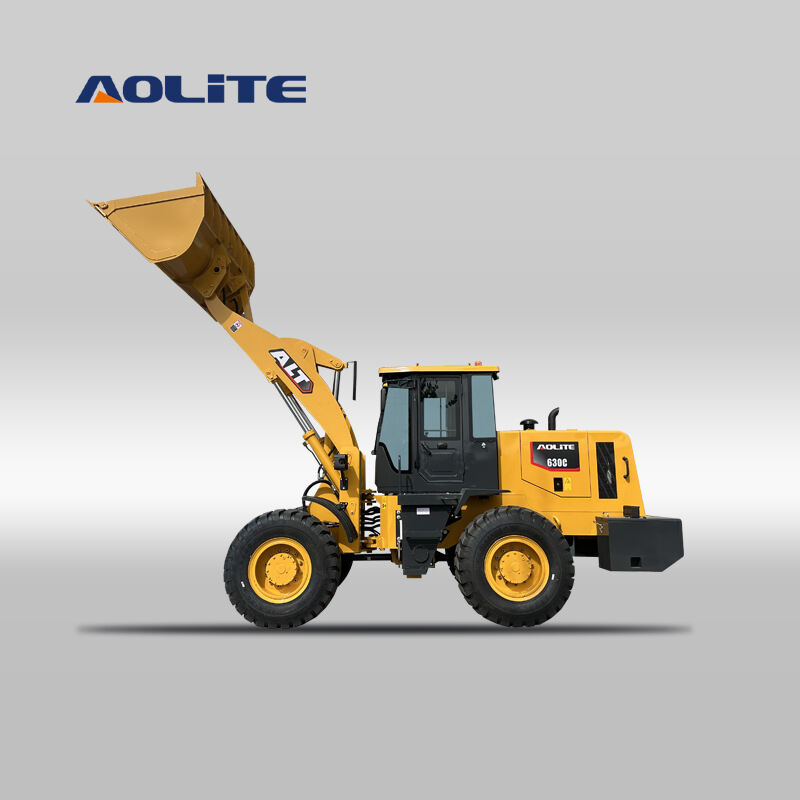

Name: 630C Diesel wheel loader C series high-end version
630C Diesel wheel loader C series high-end version
-- High Capacity: 3000Kg load / 1.7m³ bucket it meets medium-to-high-intensity material handling needs;
-- Powerful Engine: Equipped with WEICHAI DEUTZ 6108 Turbo engine, featuring a rated power of 92kW it delivers stable and robust;
-- Superior Mobility: 380mm ground clearance 2630mm wheelbase enabling it to easily cross obstacles and drive stably on rough terrain;
-- Stable Design: 9700Kg weight ensuring strong stability during operations to reduce the risk of rollover and guarantee safety.
| Rated load(Kg) | 3000 |
| Bucket capacity(m³) | 1.7 |
| Overall weight(Kg) | 9700 |
| Max. dumping height(mm) | 3200 |
| Dumping distance(mm) | 1006 |
| Gearbox model | 320B |
| Transmission mode | Hydraulic torque converter |
| Low gear(km/h) | 8 |
| High gear(km/h) | 40 |
| Max.steering angle(°) | 土35° |

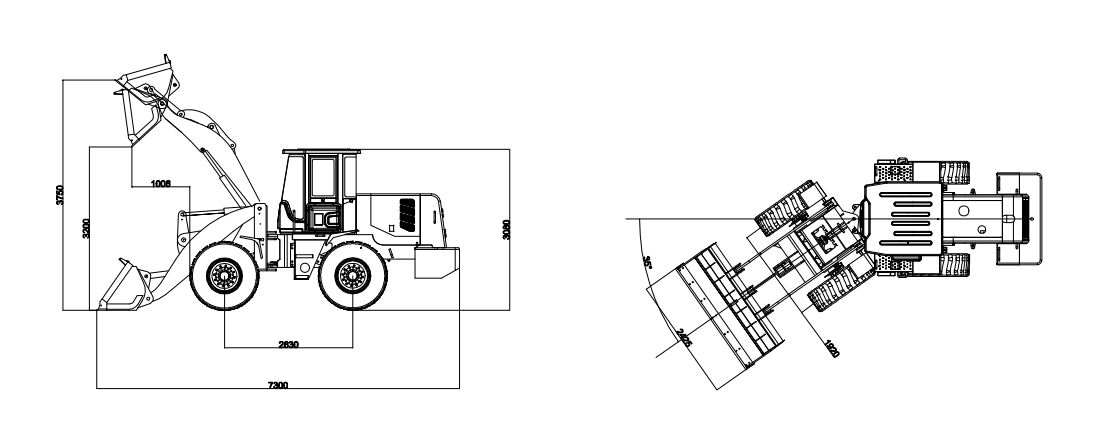

| Length(mm) | 7300 |
| Width(mm) | 2425 |
| Height(mm) | 3080 |
| Bucket width(mm) | 2425 |
| Wheel base(mm) | 2630 |
| Wheel thread(mm) | 1920 |
| Min. ground clearance(mm) | 380 |
| Engine model | 6108 Turbo |
| Engine brand | WEICHAI DEUTZ |
| Rated power(kw) | 92 |
| Rated speed(r/min) | 2200 |
| Alxe model | ZL30 |
| Tyre | 17.5-25 |
| Working brake | air push oil |
| Parking brake | Handbrake clamp disc type |
